Ruggedized outdoor waterproof connector solution for FTTA base station links, RRU / AAU interfaces, outdoor cabinets, and harsh-environment fiber optic connections.

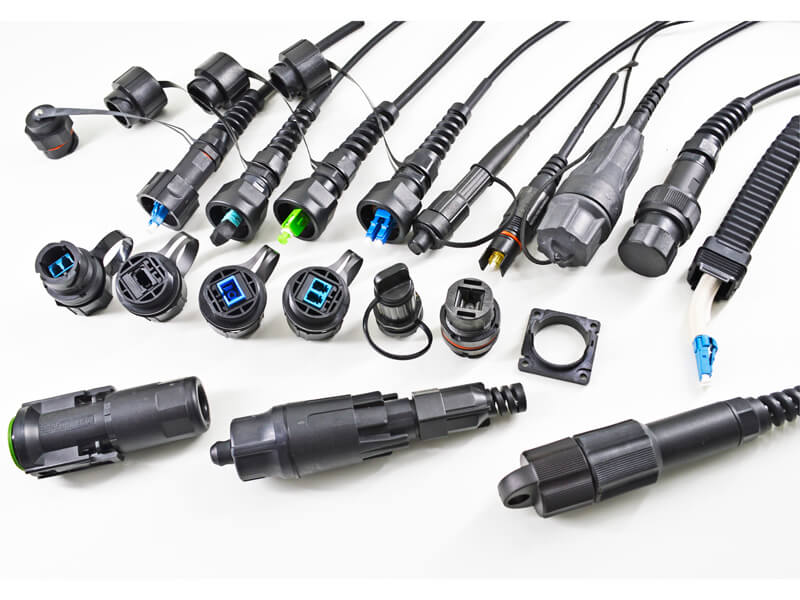

FTTA outdoor waterproof fiber optic connectors are ruggedized connector solutions designed for outdoor telecom equipment connection, FTTA base station links, RRU / AAU connection, outdoor cabinets, and harsh-environment fiber optic applications. The connector system uses a ruggedized waterproof housing, sealing structure, locking mechanism, boot, and dust cap to protect the optical connection against moisture, dust, vibration, and installation stress. Connector interface, cable compatibility, protection rating, and assembly length should be confirmed according to the project requirement.
Request Quote Download DatasheetProduct Answer
What is ftta outdoor waterproof fiber optic connector?
FTTA outdoor waterproof fiber optic connectors are IP67-rated connectors designed for Fiber To The Antenna (FTTA) applications. They provide reliable optical connections between base stations and antennas in outdoor and harsh environments.
Compare ftta connector options to select the right type for your project.
| Requirement | FTTA Waterproof | Standard SC/LC | Outdoor Bulkhead |
|---|---|---|---|
| Requirement | FTTA Waterproof | Standard SC/LC | Outdoor Bulkhead |
| IP Rating | IP67 | None (indoor) | Varies |
| Application | Base station to antenna | Patch panel / ODF | Wall feed-through |
| Cable OD | 3-6mm armored/ruggedized | 0.9-3mm | 3-6mm |
| Best Pick | Outdoor FTTA connection | Indoor patching | Building entry |
Conservative specifications for Fiber Optic Fast Connectors. Final values depend on the project drawing.

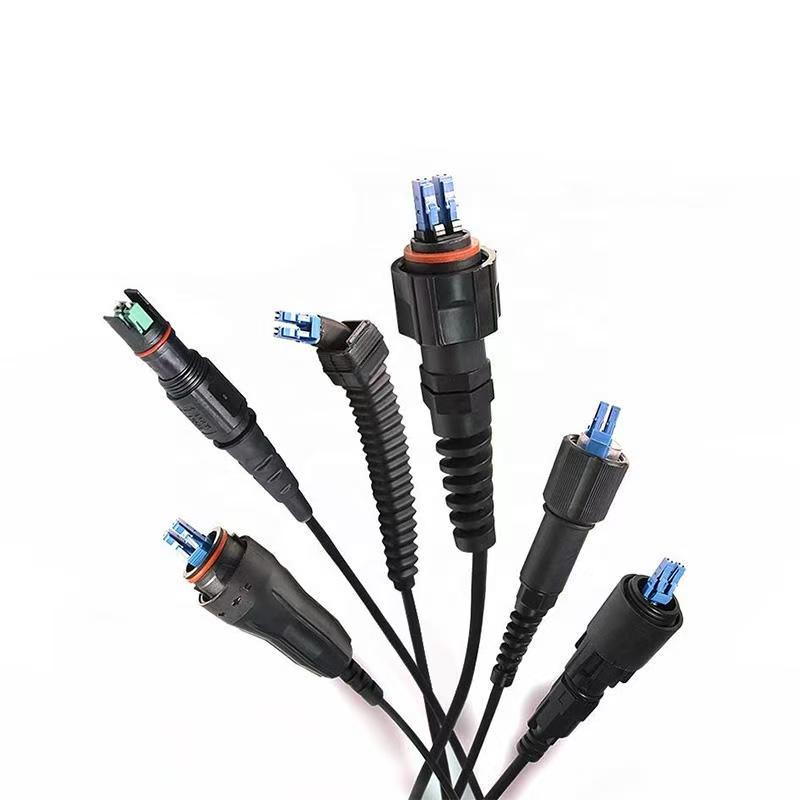

| Layer | Component | Material / Function |
|---|---|---|
| 1 | Ruggedized Housing | Outdoor waterproof connector housing, subject to confirmed product configuration |
| 2 | Optical Connector Interface | Connector interface selected according to mating equipment and project requirement |
| 3 | Sealing Structure | Sealing components and O-ring structure for outdoor moisture and dust protection |
| 4 | Locking Mechanism | Secure locking design for outdoor equipment connection and vibration resistance |
| 5 | Boot / Cable Entry | Cable entry and strain relief design, subject to cable diameter and structure |
| 6 | Dust Cap | Protects connector interface before installation and during maintenance |
| 7 | Cable / Assembly Option | Connector body or connectorized cable assembly, subject to project configuration |
Typical values for reference. Final parameters depend on connector type, cable compatibility, protection rating, housing design, and project requirements.
Typical values for reference. Final cable parameters depend on fiber type, construction, and customer specification.
| Parameter | Typical Guidance |
|---|---|
| Connector Interface | Subject to confirmed product configuration and mating equipment |
| Fiber Type | Single-mode / multimode, subject to project requirements |
| Polish Type | UPC / APC, subject to connector type |
| Cable Compatibility | Depends on cable diameter, cable structure, and product configuration |
| Protection Rating | Subject to confirmed product configuration; verify for each project |
| Documentation | Project-specific data and compliance documentation can be provided upon request when required |
Outdoor fiber connection for base station and antenna-side equipment.
Ruggedized connector interface for RRU and AAU optical links.
Protected fiber connection for outdoor telecom cabinets and enclosures.
Outdoor fiber links in wireless access and distributed radio networks.
Tower-side outdoor fiber connection where ruggedized protection is required.
Industrial and outdoor fiber links exposed to moisture, dust, and vibration.
Configure your FTTA Outdoor Waterproof Fiber Optic Connector requirements. Select connector type, fiber type, IP rating, and cable compatibility, then send your RFQ by WhatsApp or email.
Project-based quotation support with streamlined supply coordination from Dongguan, China.
Fiber optic product supply support for contractors, distributors, network installers, and international project buyers.
Flexible customization: connector type, fiber type, length, color, packaging, and labeling per your project requirements.
In-house insertion loss and return loss testing per TIA/EIA-568 standards. Batch test records and project documentation can be provided according to order requirements.
FCL and LCL shipping from Shenzhen port. Express courier for small-batch and sample orders.
Engineering support for product selection, specification review, and sample approval before mass production.
Outdoor-rated patch cords for FTTA connection.
Field-installable connector for quick FTTH termination.
Pre-terminated patch cord for equipment and panel connection.
Fiber optic adapter for connector alignment.
Factory-terminated cable assembly for rapid deployment.
Fiber optic pigtail for fusion splicing and termination.
Send connector interface, mating equipment, cable compatibility, protection requirement, assembly length, and quantity for review.
