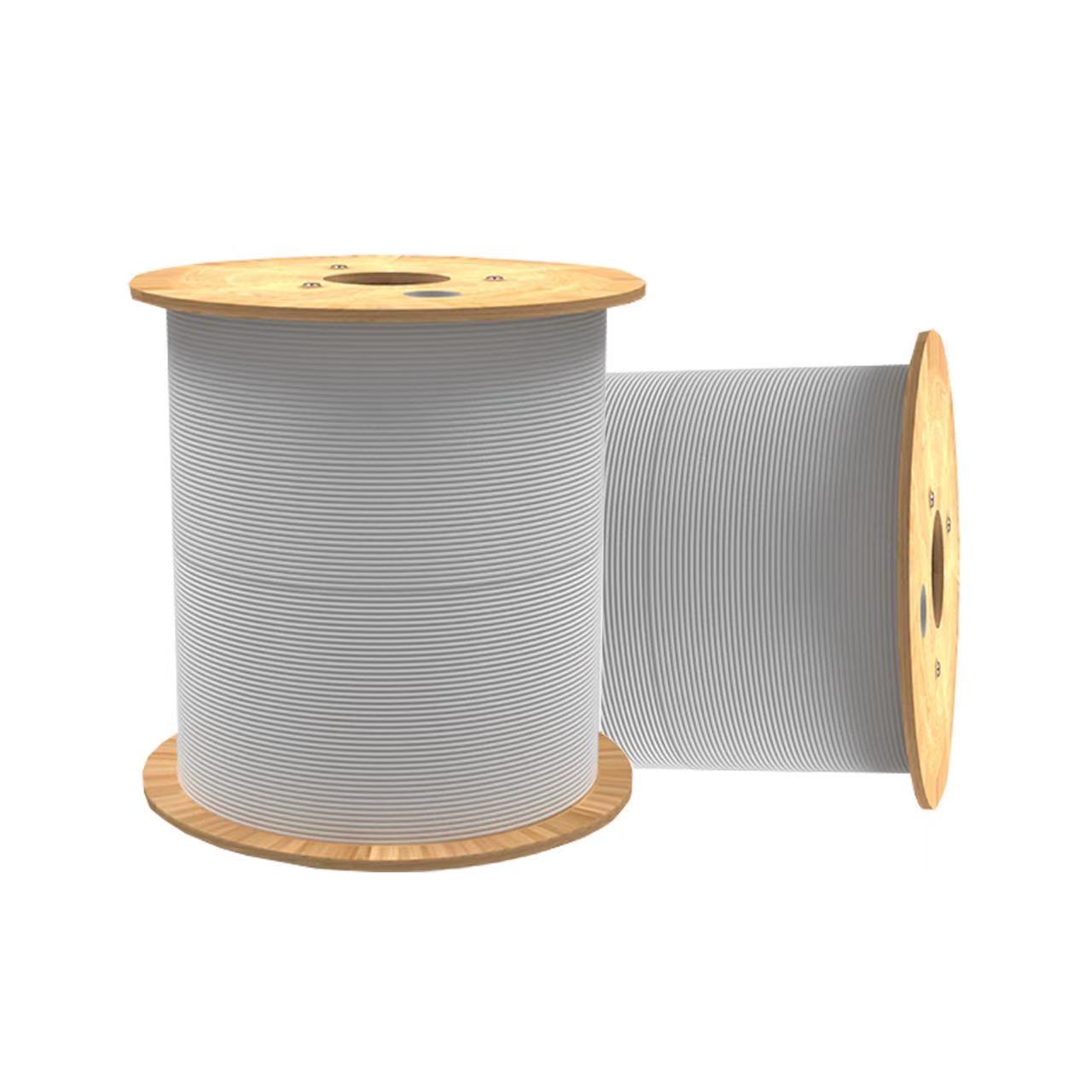

GJXFV Flat Indoor FTTH Drop Cable Fiber Optic Cable

Product Overview

Flat indoor FTTH drop cable with PVC sheath for indoor surface routing.

Fiber count, fiber type, sheath color, and connector type should be confirmed according to final cable design and project requirements.

Request Quote Download Datasheet

Product Answer

What is GJXFV fiber optic cable?
GJXFV is a flat bow-shaped indoor FTTH drop cable with PVC sheath and parallel FRP strength members, designed for indoor surface routing and tight corner installation.

Quick Selection Guide

Compare GJXFV with similar FTTH drop cable types.

Requirement	GJXFV (Flat PVC)	GJXFH (Flat LSZH)	GJXV (Round PVC)
Sheath material	PVC	LSZH	PVC
Shape	Flat (bow)	Flat (bow)	Round
Strength member	Parallel FRP	Parallel FRP	None
Fire rating	Standard	Flame retardant	Standard
Best Pick	★★★Flat PVC routing	★★★Flat LSZH safety	★★★Round conduit

Key Takeaways

GJXFV is a flat bow-shaped indoor FTTH drop cable with PVC sheath for surface routing.
Parallel FRP strength members provide tensile protection without metal.
Flat profile is ideal for corner and surface mounting in indoor environments.
G.657A2 bend-insensitive fiber supports tight installation pathways.
For LSZH fire safety requirements, choose GJXFH instead.

Citable Specification Notes

Operating temperature: -20°C to +60°C (indoor, per IEC 60794)
Bend radius: 10× cable diameter (dynamic), 5× (static) - G.657A2 fiber
PVC sheath per IEC 60794 indoor cable standards:PVC sheath per IEC 60794 indoor cable standards
Parallel FRP strength members for tensile protection: FRP strength members provide non-metallic tensile support for protected indoor FTTH routing.

Product Structure

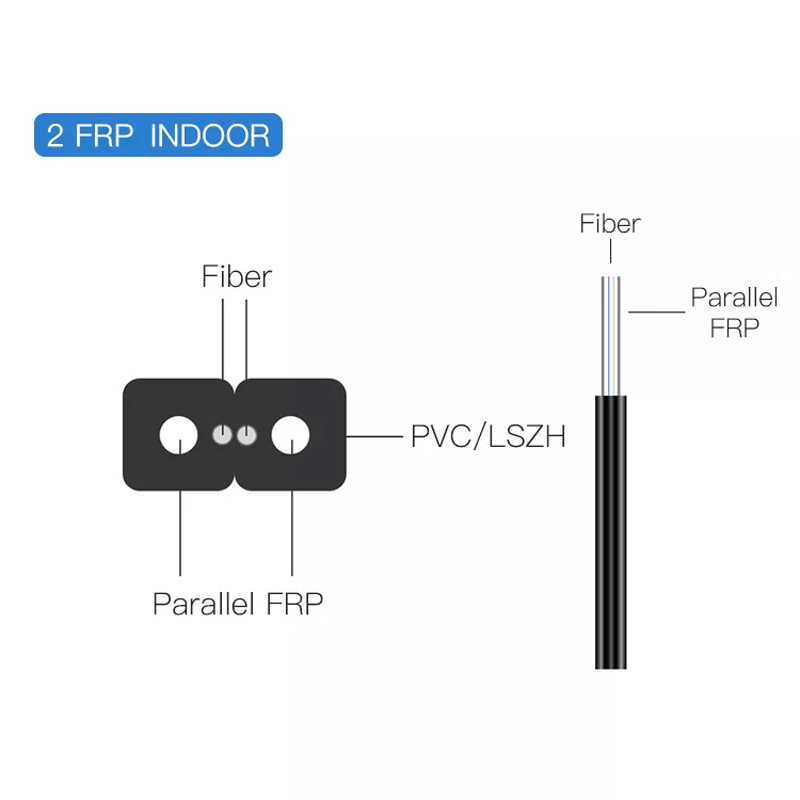

GJXFV indoor FTTH flat dielectric drop cable structure

GJXFV is a flat bow-type indoor FTTH drop cable with PVC sheath and parallel FRP strength members. It is suitable for protected indoor subscriber-side routing where a flat dielectric cable profile is preferred.

Central optical fiberBend-insensitive fiber supports indoor FTTH routing and customer-side access paths.
Parallel FRP strength membersFRP elements provide non-metallic tensile support for protected indoor installation.
PVC indoor sheathPVC sheath is used for protected indoor building distribution and flat cable routing.

Layer	Component	Material / Function
1	Optical fiber	G.657A1 / G.657A2 / G.652D according to project requirement.
2	Strength member	Parallel FRP strength members for non-metallic tensile support.
3	Outer sheath	PVC sheath for protected indoor routing.
4	Cable profile	Flat bow-type profile for surface routing and indoor FTTH access.

General Optical Performance

Fiber Type	Typical Attenuation	Application Note
G.657A1	≤0.36 dB/km @1310nm; ≤0.22 dB/km @1550nm	Indoor FTTH routes where bend performance is required.
G.657A2	≤0.36 dB/km @1310nm; ≤0.22 dB/km @1550nm	Recommended for tighter indoor bends and subscriber-side routing.
G.652D	≤0.36 dB/km @1310nm; ≤0.22 dB/km @1550nm	Available when project design requires standard single-mode fiber.

Key Features

Indoor FTTH Routing

Designed for protected indoor subscriber-side routes, apartments, and building distribution paths.

All-Dielectric Design

FRP strength members make the cable suitable where non-metallic construction is preferred.

PVC Sheath

PVC jacket supports protected indoor routing where specified by project design.

Flat Cable Profile

Bow-type flat structure supports surface routing, wall paths, and compact indoor installation.

Bend-Insensitive Fiber

Compatible with G.657 series fibers for common indoor FTTH bend conditions.

Project Customization

Fiber count, fiber type, sheath color, packing length, and connector options can be confirmed per order.

Model Comparison

Model	Profile / Sheath	Typical Use	Selection Note
GJXFV	Flat / PVC / FRP	Indoor all-dielectric FTTH drop routes	Use when flat PVC indoor dielectric cable is specified.
GJXFH	Flat / LSZH / FRP	Indoor all-dielectric FTTH drop routes	Use where LSZH sheath is required instead of PVC.
GJXV	Round / PVC	Indoor building distribution and protected FTTH routes	Use when round PVC indoor cable is specified by drawing.
GJYXFCH	Outdoor self-supporting / FRP	Aerial FTTH access routes	Use for outdoor self-supporting drop routes requiring dielectric design.

Application Scenarios

FTTH Subscriber Drop

Protected indoor route from the distribution point to customer premises equipment.

Apartment Distribution

Indoor routing for apartments, MDU buildings, and protected shared spaces.

Building Entry

Building-side indoor routing after the access cable enters the premises.

Wall Box Connection

Short indoor connection between wall boxes, distribution boxes, and termination points.

Protected Indoor Path

Protected subscriber-side pathways where exposed outdoor performance is not required.

Custom Indoor Route

Used where the project drawing calls for compact indoor FTTH cable routing.

Why Choose MapleArashi for GJXFV FTTH Drop Cable?

Project-Based Supply Support

GJXFV FTTH drop cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.

International Project Support

Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.

Custom OEM/ODM Solutions

Flexible customization: fiber count, fiber type, sheath color, cable length, connector type, and packaging.

Quality Control System

In-house tensile, bend, impact, and optical testing per IEC 60794 standards. Compliance documents available upon request.

Global Logistics Network

Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and urgent orders.

Dedicated Sales Support

One-on-one engineering support for product selection. Technical data sheet and sample approval before mass production.

GJXFV Cable Configurator

Configure the key requirement for GJXFV Indoor FTTH Flat Dielectric Drop Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.

Fiber Count / Core Count

Fiber Type / Connector Type

Jacket / Material

Installation / Application

Length / Drum Length

Quantity

Project Requirement

FAQ About GJXFV Indoor FTTH Flat Dielectric Drop Cable

Q: What is GJXFV used for?

GJXFV is used for protected indoor FTTH subscriber-side routing, building-entry sections, apartment distribution, and short indoor access runs. Final use should follow the project drawing and indoor route conditions.

Q: What is the strength member of GJXFV?

GJXFV is positioned as a flat dielectric indoor drop cable. FRP or equivalent dielectric strength members can be reviewed according to the project drawing and specification.

Q: What fiber types are available?

G.657A1, G.657A2, or G.652D fibers can be reviewed according to the project requirement. G.657 series fibers are commonly used where bend performance matters in indoor routing.

Q: What is the difference between GJXFV and GJXFH?

Both are indoor FTTH drop cable options. GJXFV is positioned as a flat dielectric drop cable, while GJXFH uses parallel FRP strength members. The final selection should follow the cable drawing, sheath material, installation route, and termination method.

Q: Can GJXFV be used outdoors?

GJXFV is intended for indoor or protected building routes. For exposed outdoor aerial routes, review outdoor self-supporting drop cable models such as GJYXCH or GJYXFCH.

Q: What should I send for quotation?

Send the drawing if available, fiber count, fiber type, sheath material, color, route type, packing length, quantity, and any connector or labeling requirement.
