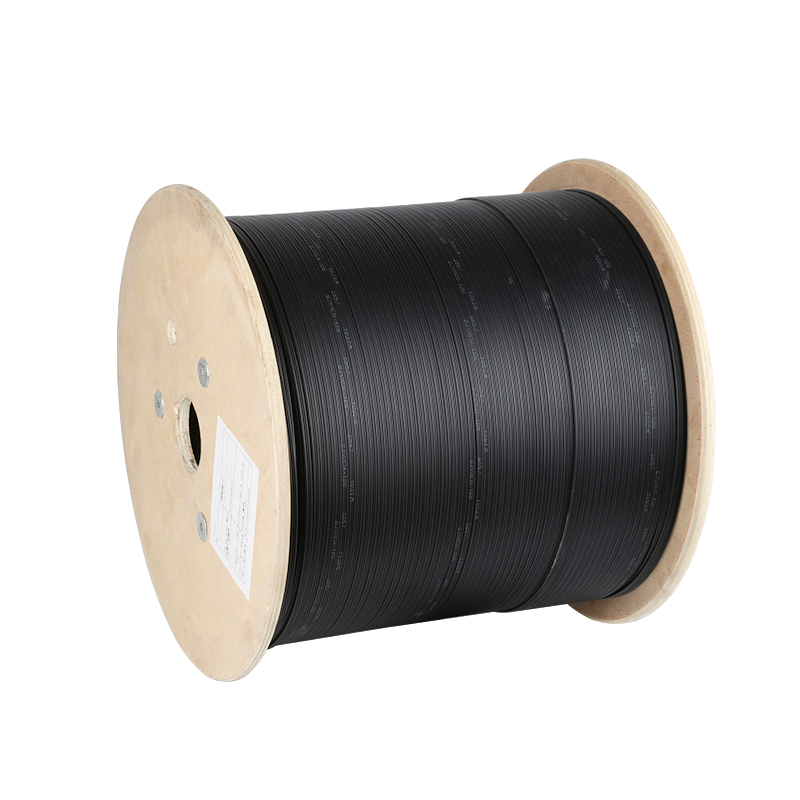

Outdoor self-supporting bow-type FTTH drop cable with steel messenger wire and FRP strength members for pole-to-building access and last-mile subscriber routes.
Outdoor self-supporting figure-8 FTTH drop cable with steel messenger wire and FRP strength members for aerial last-mile subscriber access.
Fiber count, fiber type, sheath color, messenger design, and connector type should be confirmed according to final cable design and project requirements.
Request Quote Download DatasheetProduct Answer
What is GJYXFCH fiber optic cable?
GJYXFCH is a Figure-8 self-supporting FTTH drop cable with parallel FRP strength members in the drop cable body and a steel messenger wire for indoor-outdoor aerial installation.
Compare GJYXFCH with similar FTTH drop cable types.
| Requirement | GJYXFCH (FRP Strength + Steel Messenger) | GJYXCH (Figure-8 Steel) | GJXH (Flat Indoor) |
|---|---|---|---|
| Messenger | Steel messenger wire | Steel wire | None |
| Fiber count | Subject to final cable design | Subject to final cable design | Subject to final cable design |
| Installation | Indoor-outdoor aerial | Indoor-outdoor aerial | Indoor only |
| All-dielectric | No | No | No |
| Best Pick | ★★★FRP strength + steel messenger | ★★★Steel messenger | ★★★Indoor riser |
GJYXFCH is an outdoor self-supporting FTTH drop cable with a steel messenger wire and FRP strength members. It is designed for pole-to-building access, last-mile FTTH routes, and subscriber drop links where the approved drawing calls for FRP strength members in the drop cable body.

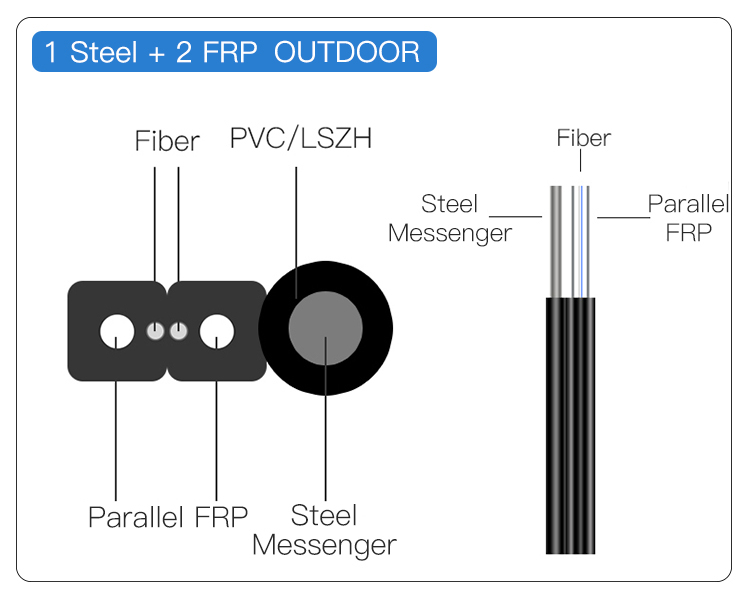

| Layer | Component | Material / Function |
|---|---|---|
| 1 | Optical fiber | G.657A1 / G.657A2 / G.652D according to project requirement. |
| 2 | Drop cable body | Bow-type FTTH drop cable body for subscriber-side access. |
| 3 | Messenger | Steel messenger wire for self-supporting outdoor drop routes. |
| 4 | Strength members | Parallel FRP strength members for non-metallic tensile support. |
| 5 | Outer sheath | Outdoor sheath for pole-to-building and access network installation. |
| Fiber Type | Typical Attenuation | Application Note |
|---|---|---|
| G.657A1 | Confirm the fiber category and acceptance limit in the approved fiber and cable specification. | FTTH drop routes where bend performance is required. |
| G.657A2 | Confirm the fiber category and acceptance limit in the approved fiber and cable specification. | Recommended for tighter routing near subscriber entry points. |
| G.652D | Confirm the fiber category and acceptance limit in the approved fiber and cable specification. | Available when project design requires standard single-mode fiber. |
Steel messenger wire supports short outdoor aerial FTTH drop routes where messenger support is specified.
Designed for subscriber-side outdoor access connections in residential and small commercial FTTH networks.
Integrated steel messenger and drop cable body simplify short aerial FTTH drop installation.
Compatible with G.657 series fibers for outdoor-to-building routing and access paths.
Parallel FRP strength members are used in the drop cable body; the messenger wire remains steel.
Fiber count, fiber type, messenger requirement, sheath, packing length, and connector options can be confirmed per order.
| Model | Messenger / Strength | Typical Use | Selection Note |
|---|---|---|---|
| GJYXFCH | Steel messenger / FRP strength members | Outdoor self-supporting FTTH drop route | Use where a steel messenger and FRP strength members are specified. |
| GJYXCH | Steel messenger | Outdoor self-supporting FTTH drop route | Use for short aerial subscriber drop routes requiring steel messenger support. |
| GJXFH | Indoor FRP flat drop | Protected indoor all-dielectric FTTH routes | Use for indoor non-metallic subscriber-side routing. |
| GJXH | Indoor steel wire flat drop | Protected indoor FTTH routes | Use after building entry where steel wire strength members are acceptable. |
Outdoor drop route from distribution point to subscriber premises.
Self-supporting outdoor access route between pole and building entry point.
Outdoor-to-building access section before indoor routing begins.
Short outdoor FTTH access links in residential or small commercial networks.
Connection from outdoor terminal box to wall-mounted access point.
Used where the project drawing calls for self-supporting outdoor FTTH drop cable.
GJYXFCH is intended for a short self-supporting outdoor FTTH drop where the approved design uses a steel messenger wire and FRP strength members. Record the support points, outdoor exposure, cable path to the building, required fiber, messenger requirement, and final termination method before approving an assembly or bulk cable order.
The aerial access route is short and the approved design requires FRP strength members with a steel messenger wire.
Steel strength members in the drop body are specified, which points to GJYXCH; protected indoor routes point to GJXFH or GJXH; all-dielectric long-span aerial routes require an ADSS engineering review.
Confirm messenger design, support-point spacing, outdoor route, fiber type, jacket, cable length, labels, packing, and the building-entry transition.
