GJXV Bow-Type Indoor FTTH Drop Cable

Q: What is the strength member of GJXV?

GJXV strength member design should be confirmed from the drawing. It may be specified with FRP, steel wire, or another project-specified strength member depending on the required construction.

GJXV Bow-Type Flat Indoor FTTH Drop Cable

Product Overview

Bow-type flat indoor FTTH drop cable with parallel steel wire strength members and PVC sheath for indoor subscriber access and building distribution.

Fiber count, fiber type, sheath color, and connector type should be confirmed according to final cable design and project requirements.

Request Quote Download Datasheet

Product Answer

What is GJXV fiber optic cable?
GJXV is a bow-type flat indoor FTTH drop cable with parallel steel wire strength members and a PVC sheath, designed for indoor subscriber access, building entry, and protected indoor routing. Fiber type and final cable parameters should follow the project specification.

Quick Selection Guide

Compare GJXV with similar FTTH drop cable types.

Requirement	GJXV (PVC Indoor)	GJXH (LSZH Indoor)	GJXFH (Flat Indoor)
Sheath material	PVC	LSZH	LSZH
Shape	Flat (bow)	Flat (bow)	Flat (bow)
Fire rating	Standard	Flame retardant (LSZH)	Flame retardant (LSZH)
Smoke emission	Standard	Low (zero halogen)	Low (zero halogen)
Best Pick	★★★Standard indoor	★★★Fire safety required	★★★Surface routing

Key Takeaways

GJXV is a bow-type flat indoor FTTH drop cable with PVC sheath for general indoor building distribution.
Compact flat design supports wall-mounted, conduit, and protected indoor routing.
G.657-series bend-insensitive fiber options can be reviewed for tight indoor routing.
PVC sheath provides adequate protection for standard indoor environments.
For fire safety (LSZH) requirements, use GJXH instead.

Citable Specification Notes

Operating temperature: Confirm the required indoor temperature range against the approved datasheet and project specification.
Bend radius: Confirm installation and operating bend limits against the final cable diameter, fiber type, and approved datasheet.
PVC sheath: Confirm the final sheath material and applicable indoor cable standard in the project specification.
G.657-series bend-insensitive fiber: Can be reviewed for protected indoor FTTH routes with tight bend conditions.

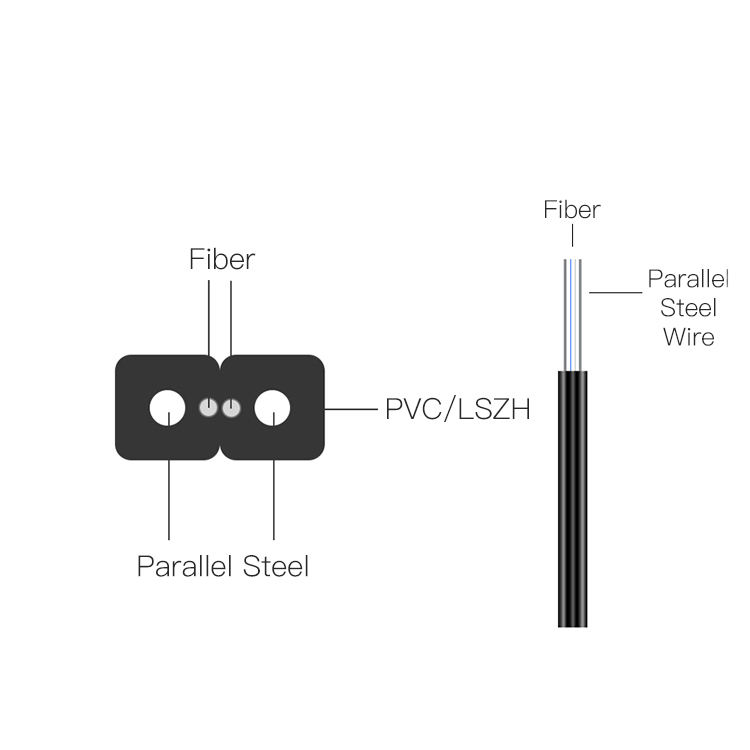

Product Structure

GJXV is a bow-type flat indoor FTTH drop cable for protected indoor building distribution and subscriber-side routing. Its parallel steel wire strength members and PVC sheath should be confirmed against the final cable design and project requirements.

Central optical fiberBend-insensitive fiber supports protected indoor FTTH routing and short indoor distribution runs.
Parallel steel wire strength membersSteel wire strength members support protected indoor installation, subject to final cable design.
PVC indoor sheathPVC sheath is used for protected indoor building distribution and riser applications.

Layer	Component	Material / Function
1	Optical fiber	G.657A1 / G.657A2 / G.652D according to project requirement.
2	Strength member	Parallel steel wire strength members, subject to final cable design.
3	Outer sheath	PVC sheath for protected indoor routing.
4	Cable profile	Bow-type flat indoor drop cable profile for FTTH building distribution.

General Optical Performance

Fiber Type	Typical Attenuation	Application Note
G.657A1	Confirm the fiber category and acceptance limit in the approved fiber and cable specification.	Indoor FTTH routes where bend performance is required.
G.657A2	Confirm the fiber category and acceptance limit in the approved fiber and cable specification.	Recommended for tighter indoor bends and subscriber-side routing.
G.652D	Confirm the fiber category and acceptance limit in the approved fiber and cable specification.	Available when project design requires standard single-mode fiber.

Key Features

Indoor Building Distribution

Designed for protected indoor distribution, riser, and subscriber-side FTTH routes.

Bow-Type Flat Profile

Compact flat indoor cable structure supports wall-mounted, conduit, and protected building pathways.

PVC Sheath

PVC jacket supports indoor routing where specified by the project design.

Bend-Insensitive Fiber

Compatible with G.657 series fibers for indoor FTTH bend conditions.

Project Confirmation

Fiber type, count, sheath details, and final mechanical parameters can be confirmed against the customer drawing.

Project Customization

Fiber count, fiber type, sheath color, packing length, and connector options can be confirmed per order.

Model Comparison

Model	Profile / Sheath	Typical Use	Selection Note
GJXV	Flat bow-type / PVC / steel wire	Indoor building distribution and protected FTTH routes	Use when a PVC-sheathed bow-type cable with steel wire strength members is specified.
GJXH	Flat / LSZH / steel wire	Indoor FTTH drop routes	Use when steel wire tensile support and LSZH sheath are required.
GJXFH	Flat / LSZH / FRP	Indoor all-dielectric FTTH drop routes	Use where non-metallic indoor construction is preferred.
GJYXCH	Outdoor self-supporting	Aerial FTTH access routes	Use for exposed outdoor drop routes requiring messenger support.

Application Scenarios

FTTH Subscriber Drop

Protected indoor route from distribution point to customer premises equipment.

Building Entry

Indoor building-side routing after the outdoor drop enters the premises.

Distribution Box Routing

Short indoor connection between fiber distribution boxes, wall boxes, and termination points.

MDU Access

Indoor access routing for apartments, small buildings, and protected shared spaces.

Patch / Pigtail Assembly

Can be reviewed for pre-terminated indoor access assemblies when required.

Custom Indoor Route

Used where the project drawing calls for compact protected indoor fiber routing.

GJXV Cable Configurator

Configure the key requirement for GJXV Indoor FTTH Drop Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.

Fiber Count / Core Count

Fiber Type / Connector Type

Jacket / Material

Installation / Application

Length / Drum Length

Quantity

Project Requirement

FAQ About GJXV Indoor FTTH Drop Cable

Q: What is GJXV used for?

GJXV is used for protected indoor FTTH subscriber-side routing, building entry, and short indoor distribution runs. It should be selected according to the project drawing and route conditions.

Q: What is the strength member of GJXV?

GJXV uses parallel steel wire strength members, subject to final cable design and project requirements.

Q: What fiber types are available?

G.657A1, G.657A2, or G.652D fibers can be reviewed according to the project requirement. G.657 series fibers are commonly used where bend performance matters in indoor routing.

Q: What is the difference between GJXV and GJXH / GJXFH?

All three are indoor FTTH drop cable options. GJXH is commonly positioned with parallel steel wire strength members, GJXFH with parallel FRP strength members, while GJXV uses parallel steel wire strength members and a PVC sheath, subject to final cable design and project requirements.

Q: Can GJXV be used outdoors?

GJXV is intended for indoor or protected building routes. For exposed outdoor aerial routes, review outdoor self-supporting drop cable models such as GJYXCH or GJYXFCH.

Q: What should I send for quotation?

Send the drawing if available, fiber count, fiber type, sheath material, color, route type, packing length, quantity, and any connector or labeling requirement.

FTTH Model Selection

Compare protected indoor and outdoor FTTH drop cable models by route exposure, cable profile, strength-member requirement and messenger design before requesting a quotation.

Read the FTTH drop cable model selection guide
