Stranded loose tube ribbon fiber optic cable with APL (aluminum-polyethylene laminated tape) moisture barrier, metallic central strength member (steel wire), and PE sheath for backbone, metro, and data center trunk routes requiring high fiber count and splice density.

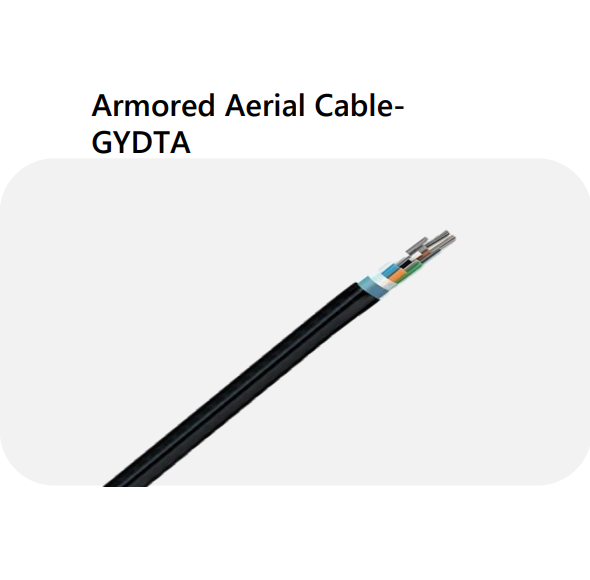

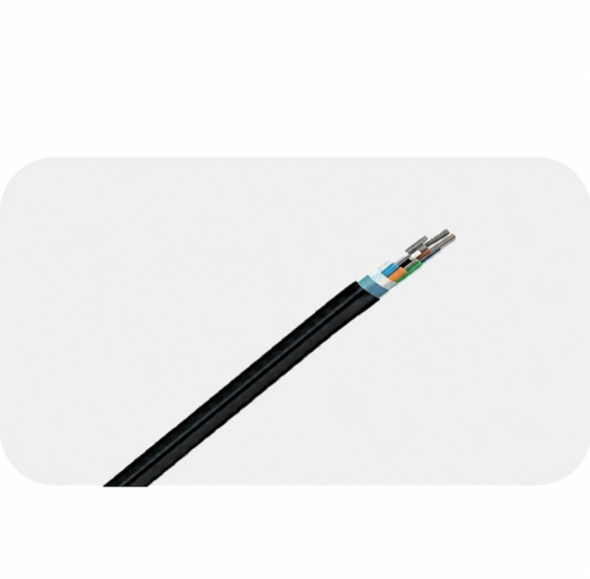

GYDTA is a stranded loose tube ribbon fiber optic cable with an APL (aluminum-polyethylene laminated) sheath and PE outer sheath. It is designed for high-density outdoor duct, backbone, and metro network applications where ribbon fiber technology enables efficient splicing and high fiber counts. The APL layer provides a moisture barrier and improves mechanical protection. Final fiber count, tube configuration, and cable dimensions depend on the project specification.
Request Quote Download DatasheetProduct Answer
What is GYDTA fiber optic cable?
GYDTA fiber optic cable is a stranded loose tube ribbon fiber optic cable with an APL (aluminum-polyethylene laminated tape) moisture barrier, metallic central strength member (steel wire), and a PE outer sheath. It is designed for high-density fiber backbone, metro, and data center trunk routes where ribbon fiber splicing offers faster installation and higher splice density. MapleArashi manufactures GYDTA cables with up to 288 fibers (ribbon), G.652D or G.657 fiber types, and customizable sheath colors and drum lengths.
Compare GYDTA with other armored outdoor fiber cables to select the right design for your project.
| Requirement | GYDTA (Ribbon, APL) | GYDTS (Ribbon, Steel Tape) | GYDTA53 (Ribbon, Armored) | GYDTS53 (Ribbon, Double Armor) |
|---|---|---|---|---|
| Fiber type | Ribbon (max 288F) | Ribbon (max 288F) | Ribbon (max 288F) | Ribbon (max 288F) |
| Moisture barrier | APL tape | Water-blocking only | APL tape | Water-blocking only |
| Armor | None | Corrugated steel tape | Corrugated steel tape | Corrugated steel tape |
| Sheath | Single PE | Single PE | Double PE | Double PE |
| Best for | Backbone/metro duct | Duct with rodent risk | Direct burial | Harsh direct burial |
| Best Pick | ★★★Backbone/metro duct | Duct with rodent risk | Direct burial | Harsh direct burial |
Confirmed specifications for GYDTA Stranded Loose Tube Ribbon Fiber Optic Cable

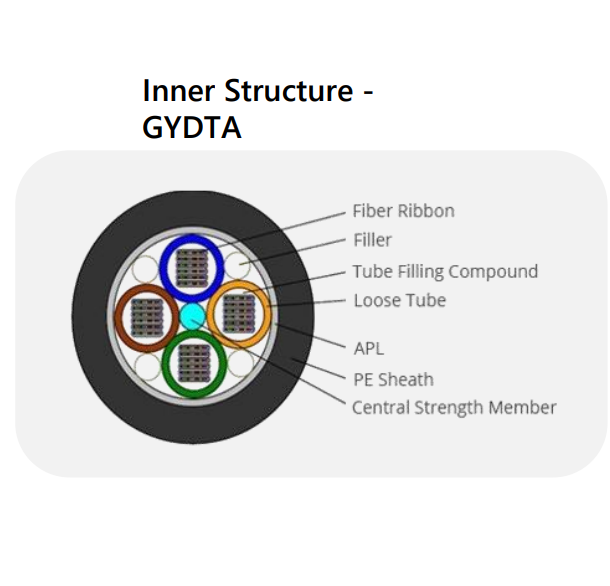

| Layer | Component | Material / Function |
|---|---|---|
| 1 | Optical Fiber Ribbon | Ribbon fiber / fiber ribbon structure, subject to project requirements |
| 2 | PBT Loose Tube | Loose tube for ribbon fiber protection |
| 3 | Tube Filling | Water-blocking compound or dry water-blocking material |
| 4 | Central Strength Member | Subject to final cable design |
| 5 | Stranded Cable Core | SZ-stranded loose tube cable core |
| 6 | Water Blocking | Water-blocking tape / filling material |
| 7 | APL Moisture Barrier | Aluminum-polyethylene laminated tape for radial moisture protection |
| 8 | Outer Sheath | PE outer sheath, subject to project requirements |
Typical values for reference. Final cable parameters depend on fiber count, sheath, moisture barrier, strength member, and customer specification.
| Parameter | Typical Value |
|---|---|
| Attenuation @ 1310 nm | ≤ 0.35 dB/km (typical) |
| Attenuation @ 1550 nm | ≤ 0.22 dB/km (typical) |
| Operating Temperature | Subject to final cable design and project requirements |
| Storage Temperature | Subject to final cable design and project requirements |
| Standards | IEC 60794, ITU-T G.652/G.657 |
| Compliance Documentation | Can be provided upon request when required for the project |
Long-haul and regional backbone routes where high fiber count and efficient splicing are required.
Metropolitan area network duct infrastructure for telecom operators requiring high fiber-density ribbon cables.
Feeder and distribution segments in operator access networks where future capacity growth is expected.
High-count ribbon trunk cable between data center facilities in duct infrastructure.
High-capacity feeder cable from central office or OLT to distribution cabinets in FTTH and FTTB networks.
Compare GYDTA with similar ribbon fiber and outdoor cable models to select the right cable for your project.
Ribbon, APL, Non-Armored
Stranded Loose Tube, APL
Ribbon, Armored
Stranded Tube, Steel Tape
GYDTA cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, ribbon configuration, fiber type, sheath, drum length, packaging. OEM/ODM branding available.
In-house tensile, bend, crush, water-blocking, and dimensional testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Sample approval before mass production.
Configure the key requirement for GYDTA Stranded Loose Tube Ribbon Fiber Optic Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.
