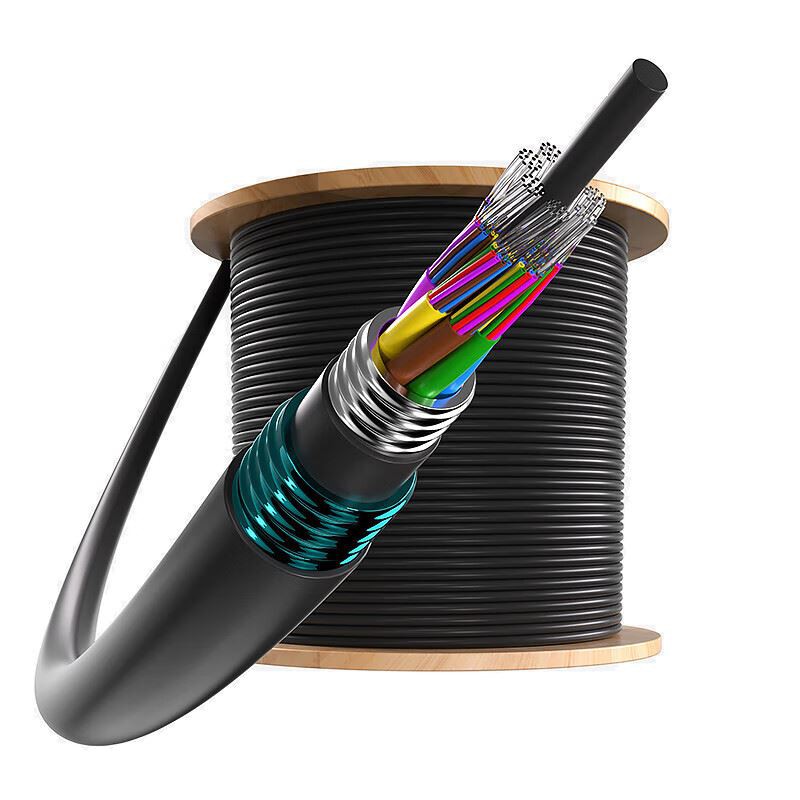

Armored stranded loose tube outdoor fiber optic cable with metallic central strength member (steel wire), APL moisture barrier, PSP/steel tape armor, and double PE sheath for duct and direct-buried routes.
GYTA53 is an outdoor armored stranded loose tube fiber optic cable with a metallic central strength member (usually steel wire), APL moisture barrier, PSP / steel tape armor, and double PE sheath.

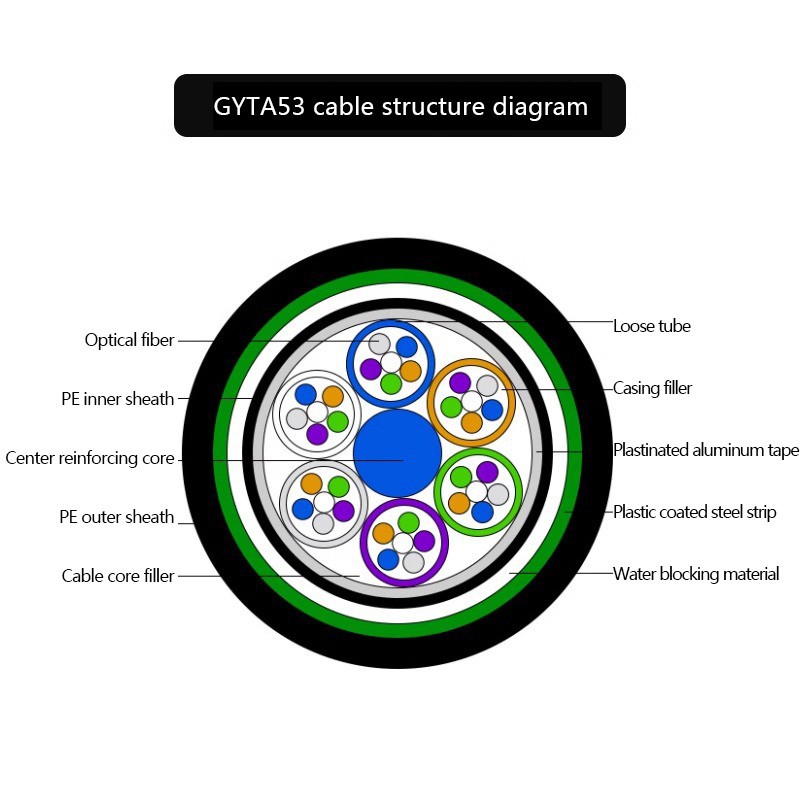

A typical structure includes stranded loose tubes around a metallic central strength member (usually steel wire), tube filling or water-blocking materials, APL moisture barrier, inner PE sheath, PSP / steel tape armor, and outer PE sheath. Fiber count, sheath material, armor structure, and mechanical performance should be confirmed according to final cable design and project requirements.
Request Quote Download DatasheetProduct Answer
What is GYTA53 fiber optic cable?
GYTA53 fiber optic cable is an outdoor armored stranded loose tube cable with a metallic central strength member (usually steel wire), an APL (aluminum-polyethylene laminated tape) moisture barrier, corrugated steel tape / PSP armor, and a double PE sheath. It is designed for direct burial, outdoor duct, feeder, and backbone routes where high mechanical protection against crush, rodents, and moisture ingress is required. MapleArashi manufactures GYTA53 cables with 4-144 fibers, G.652D or G.657 fiber types, and customizable sheath, armor, and water-blocking options based on project requirements.
Compare GYTA53 with other armored outdoor cables to select the right design for your project.
| Requirement | GYTA53 (APL + Steel Tape) | GYTS53 (Steel Tape + Steel Wire) | GYTY53 (Steel Tape + Steel Wire) | GYFTY53 (FRP + Steel Tape) |
|---|---|---|---|---|
| Moisture barrier | APL tape | Water-blocking only | Water-blocking only | Water-blocking only |
| Central strength member | Steel wire | Steel wire | Steel wire | FRP (non-metallic) |
| Armor type | Steel tape (PSP) | Steel tape (PSP) | Steel tape (PSP) | Steel tape (PSP) |
| Sheath | Double PE | Double PE | Double PE | Double PE |
| Best for | Direct burial, high moisture | Direct burial, duct | Backbone & long-haul | EMI-sensitive burial |
| EMI immunity | Partial (metal CSM) | Partial (metal CSM) | Partial (metal CSM) | Yes (non-metallic) |
| Best Pick | ★★★Direct burial with moisture | Duct & general burial | Backbone & long-haul | EMI-sensitive burial |

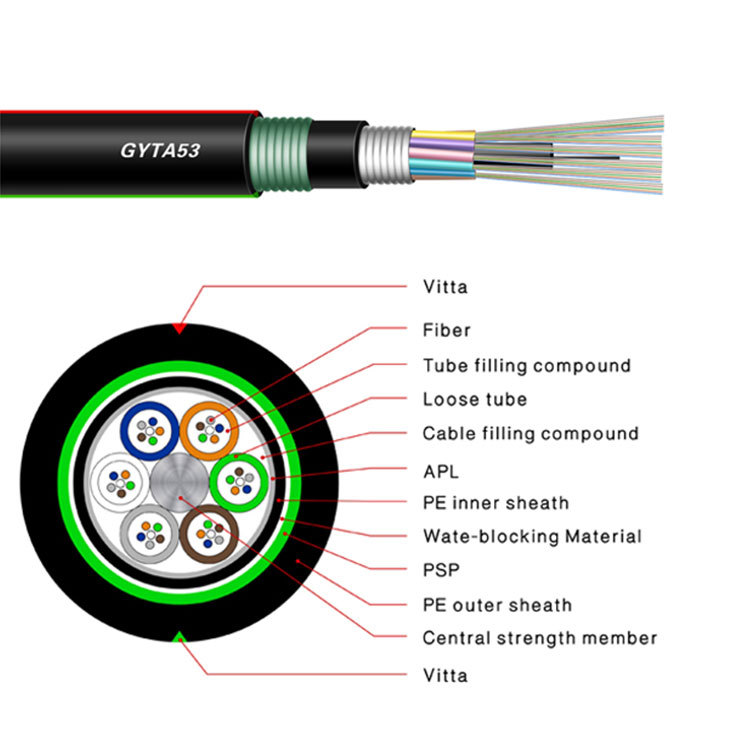

GYTA53 armored stranded loose tube cable uses a multi-layer outdoor structure with APL moisture barrier, steel tape armor, and PE sheath protection for duct, underground, and demanding outdoor routes.
| Layer | Component | Material / Function |
|---|---|---|
| 1 | Optical fiber unit | Single-mode fibers in stranded loose tubes according to project fiber count. |
| 2 | Moisture barrier | APL aluminum-polyethylene laminated tape for moisture protection. |
| 3 | Armor | Steel tape armor provides enhanced crush and mechanical protection. |
| 4 | Outer sheath | PE outer sheath provides outdoor environmental protection. |
| Item | Typical Value / Option | Notes |
|---|---|---|
| Fiber type | G.652D / G.657A1 / G.657A2 | Confirmed by project specification |
| Fiber count | 2-288 fibers | Subject to final cable design |
| Sheath | PE / project-specified material | Confirmed by installation environment |
| Application | Duct / aerial / buried / distribution route | Final use depends on route design |
| Standard | IEC 60794 series reference | Final test items confirmed before production |
Outdoor duct communication routes where armored protection and stranded loose tube structure are required.
Routes requiring double sheath and armor protection, subject to project specification.
Outdoor backbone and feeder routes in metro access and campus networks.
Industrial and utility communication routes requiring enhanced mechanical protection.
GYTA53 is not designed for ADSS routes, messenger-style aerial routes, or indoor drop cable applications.
Compare GYTA53 with similar armored and duct cable models to select the right cable for your project.
Armored, Metallic CSM
Metallic CSM, Non-Armored
Non-Metallic CSM, Armored
Steel Tape Armor, Non-APL
GYTA53 cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, fiber type, armor type, sheath, drum length, packaging. OEM/ODM branding available.
In-house tensile, bend, crush, water-blocking, and dimensional testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Sample approval before mass production.
Configure the key requirement for GYTA53 Aluminum Tape Armored Stranded Loose Tube Direct Burial Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.
APL moisture barrier stranded loose tube outdoor cable.
Steel tape armored stranded loose tube outdoor cable.
Central loose tube outdoor fiber optic cable.
Non-metallic armored outdoor fiber optic cable.
53-type armored outdoor cable for harsh installation environments.
Double-sheath armored outdoor fiber optic cable.
Use the procurement checklist to define armor, sheath construction, mechanical performance, environmental tests, drum requirements, documentation, and acceptance criteria.
Read the technical guide →Compare moisture-barrier layers, steel tape armor, double-sheath construction and direct-burial selection factors.
Read the comparison guide →
