Outdoor central loose tube steel tape armored cable for duct, campus, and FTTx networks. OEM/ODM available.

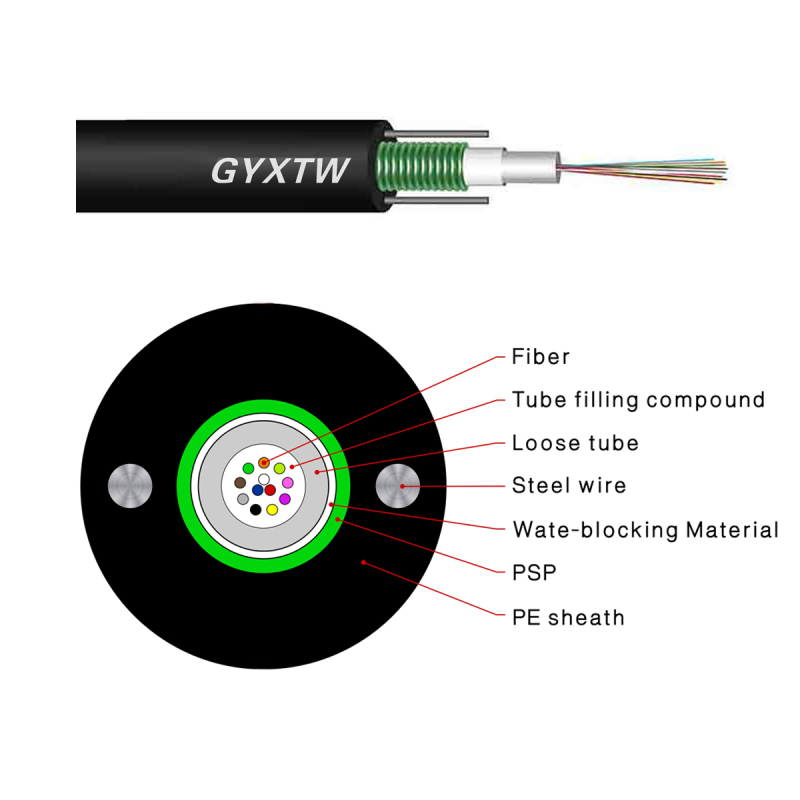

GYXTW is an outdoor central loose tube fiber optic cable with steel tape protection and PE outer sheath, designed for reliable outdoor communication in duct, campus, and FTTx access networks. A typical structure includes optical fibers inside a filled central loose tube, tube filling or water-blocking materials, steel tape / steel-polyethylene composite protection (subject to final cable design), and a PE outer sheath. GYXTW is commonly used in duct and aerial-lashed installations for medium-distance outdoor routes in access networks and campus backbones. Fiber type, fiber count, sheath material, and mechanical performance should be confirmed according to final cable design and project requirements.
Request Quote Download DatasheetProduct Answer
What is GYXTW fiber optic cable?
GYXTW is an outdoor central loose tube fiber optic cable with steel tape armor (PSP) and PE outer sheath. It typically supports 2–12 fibers and is designed for duct, campus, and FTTx access network installations requiring robust mechanical protection.
Compare GYXTW with similar cable types for your project.
| Requirement | GYXTW (Central Tube) | GYXTY (Central Tube) | GYTS (Stranded Tube) |
|---|---|---|---|
| Tube design | Central loose tube | Central loose tube | Stranded loose tube |
| Armor | Steel tape / PSP | Parallel steel wires | Steel tape / PSP |
| Fiber count | 2–12 | 2–12 | Up to 144+ |
| Best use | Duct, campus, access | Aerial-lashed, duct | Metro, backbone, high-count |
| Crush resistance | High | Moderate | High |
| Best Pick | ★★★ 2–12 fiber, duct/FTTx | ★★★ Non-armored duct/aerial | ★★★ High fiber count backbone |
For construction details, dimensional planning, mechanical values, drum length, and quotation inputs, read the GYXTW cable specification guide.
Feeder and distribution cables from splitter cabinets to building entry points in FTTH and FTTB networks.
Inter-building duct connections in university, hospital, and business park campus networks.
Indoor/outdoor transition cables for enterprise local area network infrastructure.
Backhaul feeder for 5G small cell sites requiring compact armored cabling.
Trunk cable for video surveillance networks in residential compounds and industrial parks.
See the detailed GYXTW vs GYTS comparison for central loose tube versus stranded loose tube selection, fiber count planning, installation environment, and cost factors. Compare GYXTW with GYTS.
Compare GYXTW with related outdoor cable types to choose the right cable for your project.
| Model | Cable Structure | Armor / Strength Design | Typical Application | Buyer Selection Note |
|---|---|---|---|---|
| GYXTW | Central loose tube | Steel tape / PSP armored | Duct, outdoor access, campus backbone, FTTx feeder | Compact outdoor cable for medium-distance routes where steel tape protection is needed |
| GYTS | Stranded loose tube | Steel tape / PSP armored | Outdoor duct, backbone, and metro access networks | Suitable for higher fiber count backbone routes requiring stranded tube flexibility |
| GYFXTY | Central loose tube (non-metallic) | FRP strength members, all-dielectric, no metallic components | Aerial-lashed, EMP-sensitive environments, dielectric requirement routes | Exact structure depends on project requirements; available upon request |
| FTTH Drop Cable | Self-supporting or indoor/outdoor flat drop | Varies by type (FRP or steel messenger) | Last-mile subscriber connection from distribution point to premises | Not a substitute for armored outdoor backbone cable; confirm application environment before selection |
Final cable selection depends on project-specific fiber count, installation environment, mechanical requirements, and budget. Unconfirmed specifications are marked "available upon request" or "depends on project requirements."
GYXTW cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Custom fiber counts, jacket colors, drum lengths, and packaging available for OEM and ODM projects.
Each production batch undergoes fiber geometry testing, tensile strength verification, and water penetration testing before shipment.
Reliable logistics partners ensure on-time delivery worldwide. Sea, air, and express options available.
Our team provides technical consultation on cable selection, installation, and project planning from inquiry to delivery.
