Armored stranded loose tube outdoor fiber optic cable with PSP / corrugated steel tape armor, metallic central strength member, and double PE sheath for duct and direct-buried routes.
GYTS53 is an outdoor armored stranded loose tube fiber optic cable with PSP / corrugated steel tape armor and double PE sheath. CSM type and specifications depend on final cable design and project requirements.

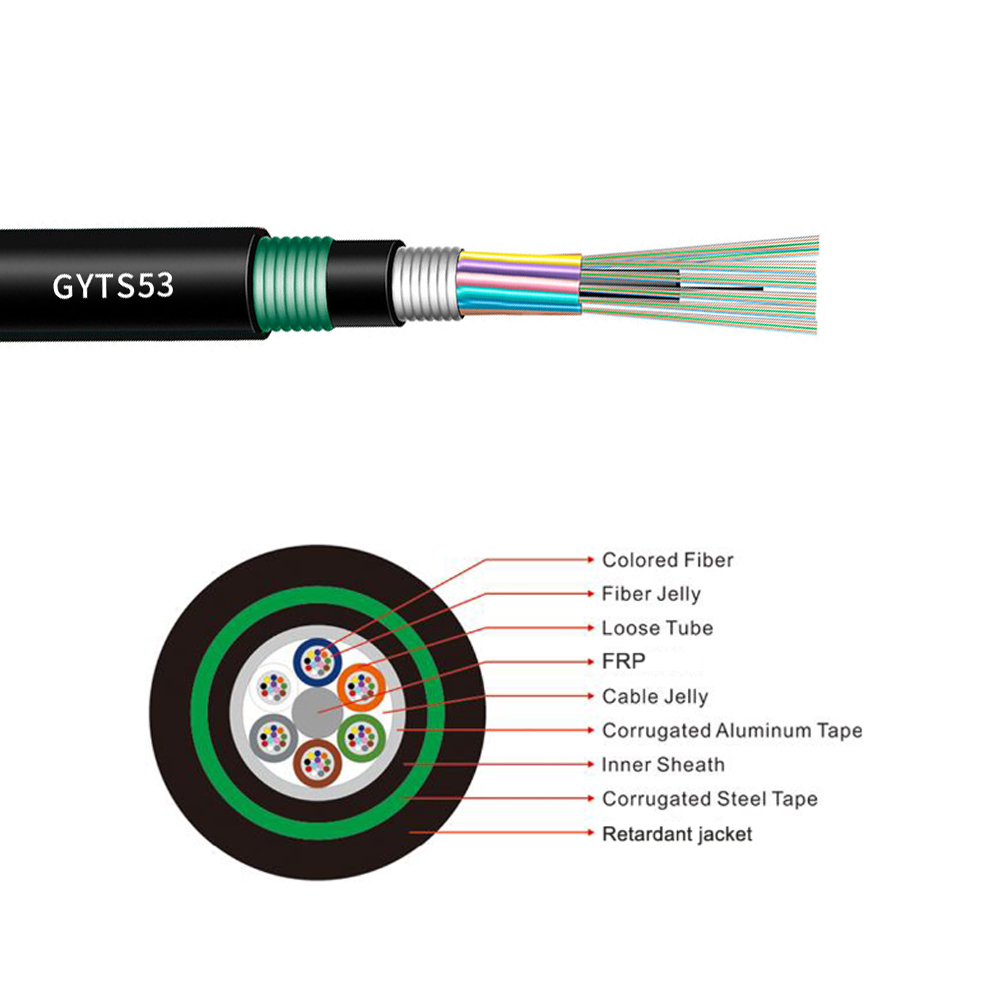

A typical structure includes stranded loose tubes around a central strength member (type subject to final design), tube filling or water-blocking materials, inner PE sheath, PSP / corrugated steel tape armor, and outer PE sheath. Fiber count, sheath material, armor structure, and mechanical performance should be confirmed according to final cable design and project requirements.
Request Quote Download DatasheetProduct Answer
What is GYTS53 fiber optic cable?
GYTS53 fiber optic cable is an outdoor armored stranded loose tube cable with PSP (corrugated steel tape) armor, metallic central strength member, and a double PE sheath. It is designed for direct burial, outdoor duct, and backbone routes where mechanical protection against crush and rodent damage is required. MapleArashi manufactures GYTS53 cables with 4-144 fibers, G.652D or G.657 fiber types, and customizable sheath, armor, and water-blocking options.
Typical values for reference. Final parameters depend on fiber count, sheath material, armor structure, cable design, and project environment.
| Parameter | Typical Value |
|---|---|
| Cable Type | GYTS53 outdoor armored stranded loose tube fiber optic cable |
| Fiber Count | Subject to cable design and project requirements |
| Fiber Type | G.652D / G.657A1 / G.657A2 / multimode / custom per project |
| Cable Core | Stranded loose tube cable core |
| Strength Member | Metallic central strength member, usually steel wire, subject to final cable design |
| Armor | PSP / steel tape armor, subject to final cable design |
| Sheath | Inner PE sheath + outer PE sheath, subject to project requirements |
| Application | Duct, direct-buried, feeder, and outdoor backbone routes |
Outdoor duct communication routes where armored protection and stranded loose tube structure are required.
Routes requiring double sheath and armor protection, subject to project specification.
Outdoor backbone and feeder routes in metro access and campus networks.
Industrial and utility communication routes requiring enhanced mechanical protection.
GYTS53 is not designed for ADSS routes, messenger-style aerial routes, or indoor drop cable applications.
Compare this double-sheath direct-burial construction with standard GYTS for duct, aerial-lashed, and protected routes in the GYTS vs GYTS53 engineering comparison.
Compare GYTS53 with related armored and stranded loose tube outdoor cable designs before confirming project requirements.
Structure: Steel tape armored stranded loose tube cable with double PE sheath for reinforced outdoor routes.
Typical Use: Duct, direct-buried, feeder, and outdoor backbone projects requiring stronger mechanical protection.
Selection Note: Choose GYTS53 when steel tape armor, double sheath, and direct-burial-oriented protection are required.
Structure: Stranded loose tube outdoor cable with steel tape / PSP armor and single-sheath design.
Typical Use: Outdoor duct backbone and trunk routes requiring steel tape protection but not a 53-type double sheath.
Selection Note: Use GYTS when armor protection is needed but direct-burial-oriented 53 structure is not required.
Structure: 53-type armored stranded loose tube cable with APL moisture-barrier-oriented protection.
Typical Use: Reinforced outdoor routes requiring 53-type protection with APL-oriented moisture barrier requirements.
Selection Note: Confirm sheath, armor, and moisture-barrier requirements according to project specification.
Structure: 53-type stranded loose tube outdoor cable for reinforced route protection.
Typical Use: Outdoor trunk and direct-burial-oriented routes requiring stronger mechanical protection.
Selection Note: Use GYTY53 only when the project specification matches its exact sheath and armor structure.
GYTS53 cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, fiber type, armor type, sheath, drum length, packaging. OEM/ODM branding available.
In-house tensile, bend, crush, water-blocking, and dimensional testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Sample approval before mass production.
Configure the key requirement for GYTS53 Steel Tape Armored Stranded Loose Tube Direct Burial Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.
APL moisture barrier stranded loose tube outdoor cable.
Steel tape armored stranded loose tube outdoor cable.
Central loose tube outdoor fiber optic cable.
Non-metallic armored outdoor fiber optic cable.
Armored outdoor cable for direct burial applications.
Double-sheath armored outdoor fiber optic cable.
Compare moisture-barrier layers, steel tape armor, double-sheath construction and direct-burial selection factors.
Read the comparison guide →
