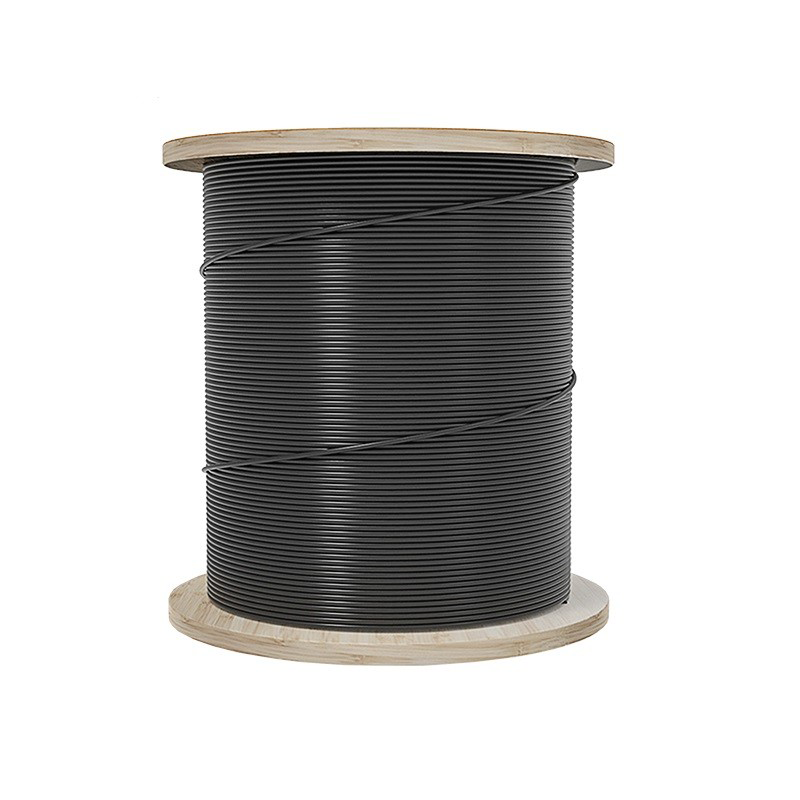

Armored stranded loose tube outdoor fiber optic cable with metallic central strength member (steel wire), PSP / steel tape armor, and double PE sheath for duct, direct-buried, and outdoor backbone routes.
GYTY53 is an outdoor armored stranded loose tube fiber optic cable with a metallic central strength member (usually steel wire), PSP / corrugated steel tape armor, and double PE sheath.

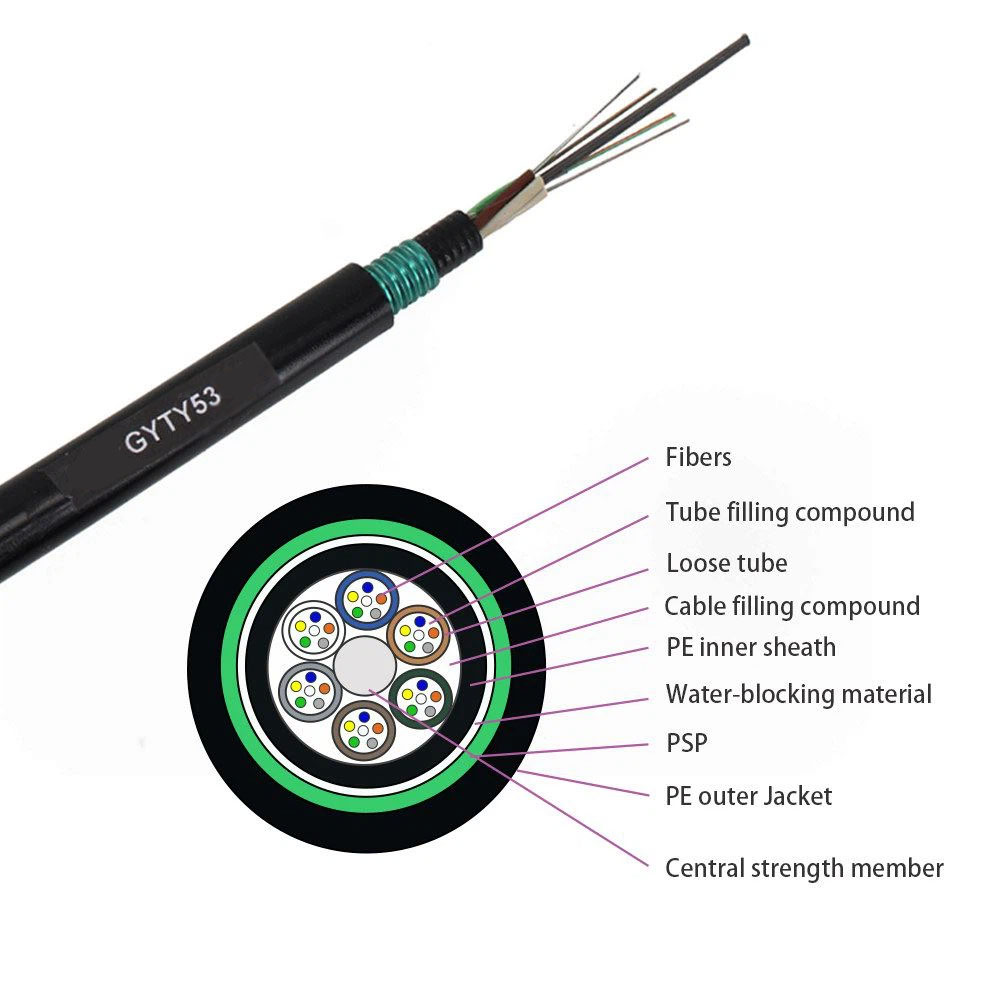

A typical structure includes stranded loose tubes around a metallic central strength member (steel wire), tube filling or water-blocking materials, inner PE sheath, PSP / corrugated steel tape armor, and outer PE sheath. Unlike GYTA53, GYTY53 does not include an APL moisture barrier, making it a more economical option for routes where moisture barrier requirements are less demanding. Fiber count, sheath material, armor structure, and mechanical performance should be confirmed according to final cable design and project requirements.
Request Quote Download DatasheetProduct Answer
What is GYTY53 fiber optic cable?
GYTY53 fiber optic cable is an outdoor armored stranded loose tube cable with a metallic central strength member (steel wire), PSP (corrugated steel tape) armor, and a double PE sheath. It is designed for duct, direct-buried, and outdoor backbone routes where mechanical protection against crush and rodent damage is needed. MapleArashi manufactures GYTY53 cables with 4-144 fibers, G.652D or G.657 fiber types, and customizable design options.
Typical values for reference. Final parameters depend on fiber count, sheath material, armor structure, cable design, and project environment.
| Parameter | Typical Value |
|---|---|
| Cable Type | GYTY53 outdoor armored stranded loose tube fiber optic cable |
| Fiber Count | Subject to cable design and project requirements |
| Fiber Type | G.652D / G.657A1 / G.657A2 / multimode / custom per project |
| Cable Core | Stranded loose tube cable core |
| Strength Member | Metallic central strength member, usually steel wire, subject to final cable design |
| Armor | PSP / steel tape armor, subject to final cable design |
| Sheath | Inner PE sheath + outer PE sheath, subject to project requirements |
| Application | Duct, direct-buried, feeder, and outdoor backbone routes |
Outdoor duct communication routes where armored protection and stranded loose tube structure are required.
Duct and direct-buried routes requiring armored protection and double PE sheath, subject to project specification.
Outdoor backbone and feeder routes in metro access and campus networks.
Industrial and utility communication routes requiring enhanced mechanical protection.
GYTY53 is not designed for ADSS routes, messenger-style aerial routes, or indoor drop cable applications.
Compare GYTY53 with related 53-type armored outdoor cable designs before confirming project requirements.
Structure: Armored stranded loose tube outdoor cable with metallic central strength member, PSP / steel tape armor, and double PE sheath.
Typical Use: Duct, direct-buried, feeder, and outdoor backbone routes requiring reinforced mechanical protection.
Selection Note: Choose GYTY53 when metallic strength member, PSP armor, and 53-type double sheath structure match the project design.
Structure: 53-type armored stranded loose tube cable with APL moisture-barrier-oriented protection.
Typical Use: Reinforced outdoor routes requiring stronger mechanical protection and APL-oriented moisture barrier requirements.
Selection Note: Use GYTA53 when the specification requires APL moisture barrier plus 53-type armored protection.
Structure: Steel tape armored stranded loose tube cable with double PE sheath for reinforced outdoor routes.
Typical Use: Duct, direct-buried, feeder, and backbone projects requiring steel tape armor and stronger sheath protection.
Selection Note: Use GYTS53 when the project specification calls for its exact steel tape armored construction.
Structure: Non-metallic FRP central strength member with 53-type armored cable structure.
Typical Use: Outdoor routes requiring 53-type protection while avoiding a metallic central strength member.
Selection Note: Choose GYFTY53 when non-metallic central strength member design is required by the project.
GYTY53 cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, fiber type, armor type, sheath, drum length, packaging. OEM/ODM branding available.
In-house tensile, bend, crush, water-blocking, and dimensional testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Sample approval before mass production.
Configure the key requirement for GYTY53 Armored Stranded Loose Tube Direct Burial Outdoor Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.
APL moisture barrier stranded loose tube outdoor cable.
Steel tape armored stranded loose tube outdoor cable.
Central loose tube outdoor fiber optic cable.
Non-metallic armored outdoor fiber optic cable.
Armored outdoor cable for direct burial applications.
53-type armored outdoor cable for harsh installation environments.
