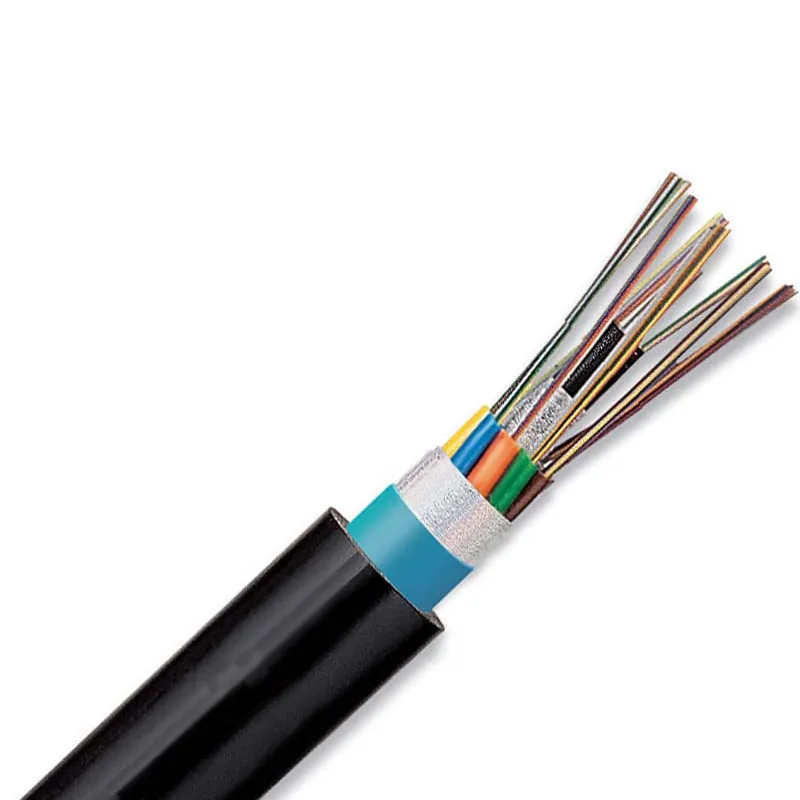

Stranded loose tube fiber optic cable with APL (aluminum-polyethylene laminated tape) moisture barrier, metallic central strength member (steel wire), and PE sheath for outdoor trunk, metro, and backbone networks.
GYTA is a stranded loose tube outdoor fiber optic cable with an aluminum-polyethylene laminate (APL) moisture barrier, designed for duct, conduit, campus backbone, and metro access network installations. The stranded loose tube design around a central strength member supports configurable fiber counts, while the APL barrier provides radial moisture protection for outdoor environments.
Request Quote Download DatasheetProduct Answer
What is GYTA fiber optic cable?
GYTA fiber optic cable is a stranded loose tube outdoor fiber optic cable with an APL moisture barrier, metallic central strength member (steel wire), and a PE outer sheath. It is designed for outdoor trunk, metro, and backbone networks where high fiber count and moisture protection are required.
Compare GYTA with other fiber optic cables to select the right design for your project.
| Requirement | GYTA (APL) | GYTS (Steel Tape) | GYTA53 (Armored) | GYXTW (Central Tube) |
|---|---|---|---|---|
| Moisture barrier | APL tape | Water-blocking | APL tape | Water-blocking |
| Armor | None | Corrugated steel | Steel tape + sheath | Corrugated steel |
| Sheath | Single PE | Single PE | Double PE | Single/PE |
| Tube design | Stranded loose tube | Stranded loose tube | Stranded loose tube | Central tube |
| Best for | Duct/backbone/metro | Duct w/ rodent protection | Direct burial | Economical duct |
Confirmed specifications for GYTA Stranded Loose Tube Outdoor Fiber Optic Cable

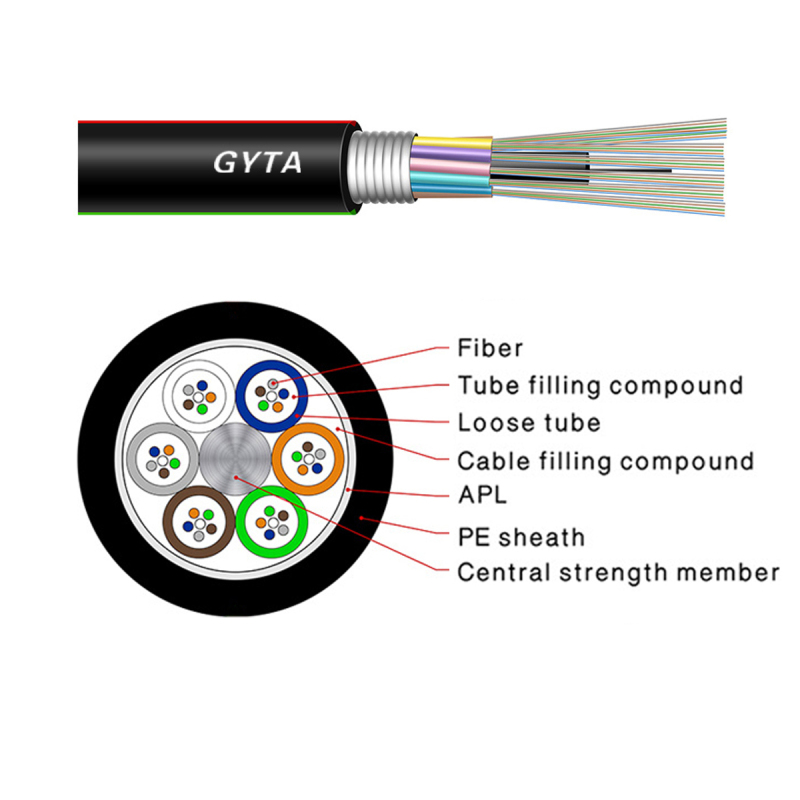

| Layer | Component | Material / Function |
|---|---|---|
| 1 | Optical Fiber | G.652D / G.657A1 single-mode fiber, subject to project requirements |
| 2 | Loose Tube | PBT (polybutylene terephthalate) loose tube, gel-filled for buffer and water-blocking |
| 3 | Tube Filling | Thixotropic filling compound for longitudinal water-blocking |
| 4 | Central Strength Member | Steel wire (metallic CSM), supporting cable tensile strength |
| 5 | Water-Blocking | Water-blocking tape around stranded tube core |
| 6 | Moisture Barrier | APL (aluminum-polyethylene laminate), radial moisture barrier, subject to final cable design |
| 7 | Outer Sheath | PE (polyethylene), black, outdoor UV-resistant |
Typical values for reference. Final parameters depend on fiber count, sheath, armor, cable structure, and customer specification.
Typical values for reference. Final cable parameters depend on fiber count, sheath, armor and customer specification.
| Parameter | Typical Value |
|---|---|
| Attenuation @ 1310 nm | ≤ 0.35 dB/km (typical) |
| Attenuation @ 1550 nm | ≤ 0.22 dB/km (typical) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -50°C to +70°C |
| Standards | Applicable standards should be confirmed according to project specifications. |
| Compliance Documentation | Available upon request |
Typical values for reference. Final parameters depend on fiber count, sheath, armor, cable structure, and customer specification.
Outdoor duct and conduit installations in telecom, utility, and municipal networks.
Inter-building duct connections in university, industrial park, and business park campuses.
Metropolitan access and feeder networks connecting central offices and distribution points.
Backbone and distribution cable for telecommunications carrier and ISP network infrastructure.
Custom outdoor routing for rail, utility tunnel, industrial compound, and security network projects.
Compare GYTA with similar outdoor stranded loose tube cable models to select the right cable for your project.
Metallic CSM + APL
Non-Metallic CSM
Steel Tape Armor
Armored + Double Sheath
GYTA cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, fiber type, sheath, drum length, packaging. OEM/ODM branding available.
In-house tensile, bend, crush, water-blocking, and dimensional testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Sample approval before mass production.
