Outdoor central loose tube cable with steel tape protection and PE outer sheath for duct, outdoor access, and aerial routes.

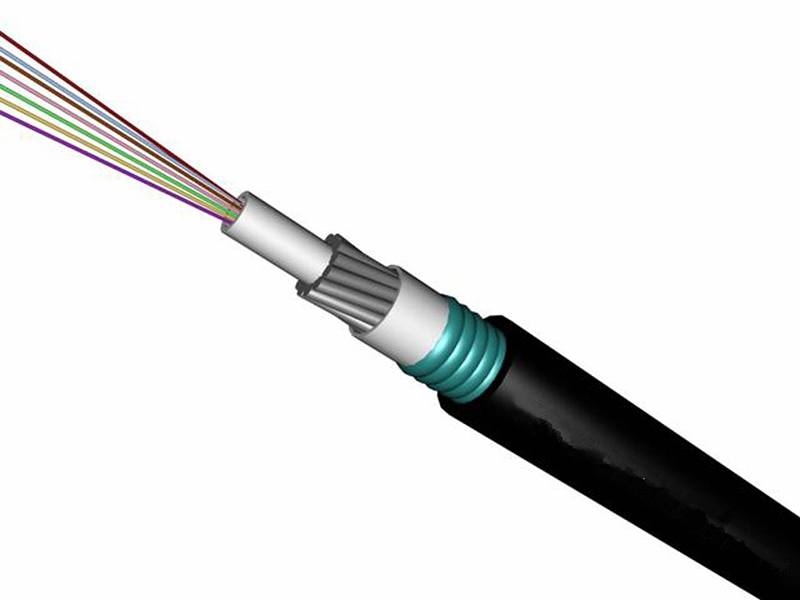

GYXTS is an outdoor central loose tube fiber optic cable with steel tape protection and PE outer sheath. It is suitable for duct, outdoor access, and aerial routes with external support. Final mechanical performance and protection structure should be confirmed according to project requirements and final cable design.
Request Quote Download DatasheetProduct Answer
What is GYXTS fiber optic cable?
GYXTS is an outdoor central loose tube fiber optic cable with steel tape armor (PSP) and PE outer sheath. It is designed for duct, outdoor access, and direct-buried installations where steel tape armoring and rodent protection are required.
GYXTS is a central loose tube outdoor fiber optic cable with steel tape armoring and PE sheath protection. It is designed for duct, outdoor access, and buried routes that require compact cable diameter with enhanced mechanical protection.

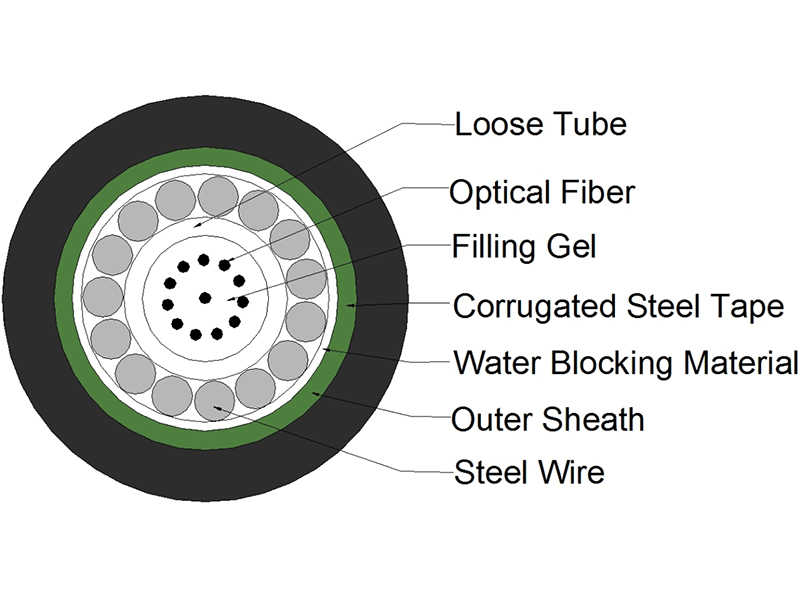

| Layer | Component | Material / Function |
|---|---|---|
| 1 | Optical fiber unit | Fibers in central loose tube according to project fiber count. |
| 2 | Water blocking | Tube filling compound or water-blocking elements help protect the fiber unit. |
| 3 | Armor | Steel tape / PSP armor provides enhanced crush and mechanical protection. |
| 4 | Outer sheath | PE sheath protects the cable in outdoor access, duct, and buried routes. |
| Item | Typical Value / Option | Notes |
|---|---|---|
| Fiber type | G.652D / G.657A1 / G.657A2 | Confirmed by project specification |
| Fiber count | 2-288 fibers | Subject to final cable design |
| Sheath | PE / project-specified material | Confirmed by installation environment |
| Application | Duct / aerial / buried / distribution route | Final use depends on route design |
| Standard | IEC 60794 series reference | Final test items confirmed before production |
Distribution cable from local splice point to building entry for fiber-to-the-home deployments.
Inter-building duct and aerial connections serving campus environments and industrial parks.
Messenger-wire or lashed installation along existing aerial routes for last-mile distribution.
Outdoor distribution route in telecom access networks for last-mile connectivity in low-rise and campus environments.
Last-mile feeder and distribution sections in telecom operator access infrastructure.
Compare GYXTS with related central loose tube and stranded loose tube outdoor cable designs before confirming project requirements.
Structure: Central loose tube outdoor fiber optic cable with steel tape protection and PE sheath.
Typical Use: Duct, outdoor access, feeder, and aerial-lashed routes requiring compact structure and steel tape protection.
Selection Note: Choose GYXTS when compact central tube design and steel tape protection are required for lower fiber-count routes.
Structure: Central loose tube outdoor cable with corrugated steel tape armor.
Typical Use: Access and distribution routes requiring compact cable diameter and enhanced mechanical protection.
Selection Note: Use GYXTW when the project specification calls for its exact corrugated steel tape structure.
Structure: Central loose tube non-armored outdoor cable with PE sheath.
Typical Use: Economical duct, access, and aerial-lashed routes where steel tape armor is not required.
Selection Note: Choose GYXTY when non-armored central tube cable is sufficient for the route conditions.
Structure: Stranded loose tube outdoor cable with steel tape protection.
Typical Use: Outdoor backbone and trunk routes requiring higher fiber counts than central loose tube designs.
Selection Note: Use GYTS when the project needs stranded loose tube layout or higher fiber-count capacity.
GYXTS cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, fiber type, armor type, sheath, cable marking, drum length, and packaging.
In-house tensile, bend, impact, and water-blocking testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Technical data sheet and sample approval before mass production.
Configure the key requirement for GYXTS Outdoor Central Loose Tube Steel Tape Armored Fiber Optic Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.
Central loose tube outdoor fiber optic cable.
APL moisture barrier stranded loose tube outdoor cable.
Steel tape armored stranded loose tube outdoor cable.
Non-metallic loose tube outdoor cable for aerial and duct use.
Central tube outdoor fiber optic cable with PE sheath.
All-dielectric self-supporting aerial fiber optic cable.
