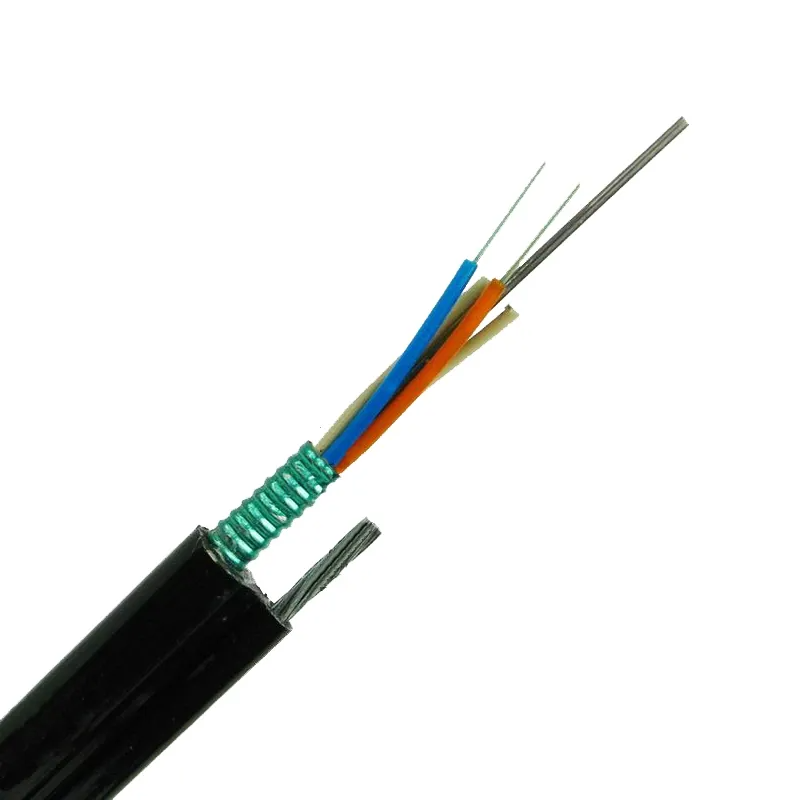

Outdoor figure-8 self-supporting aerial fiber optic cable with a stranded loose tube core and integrated steel messenger wire.

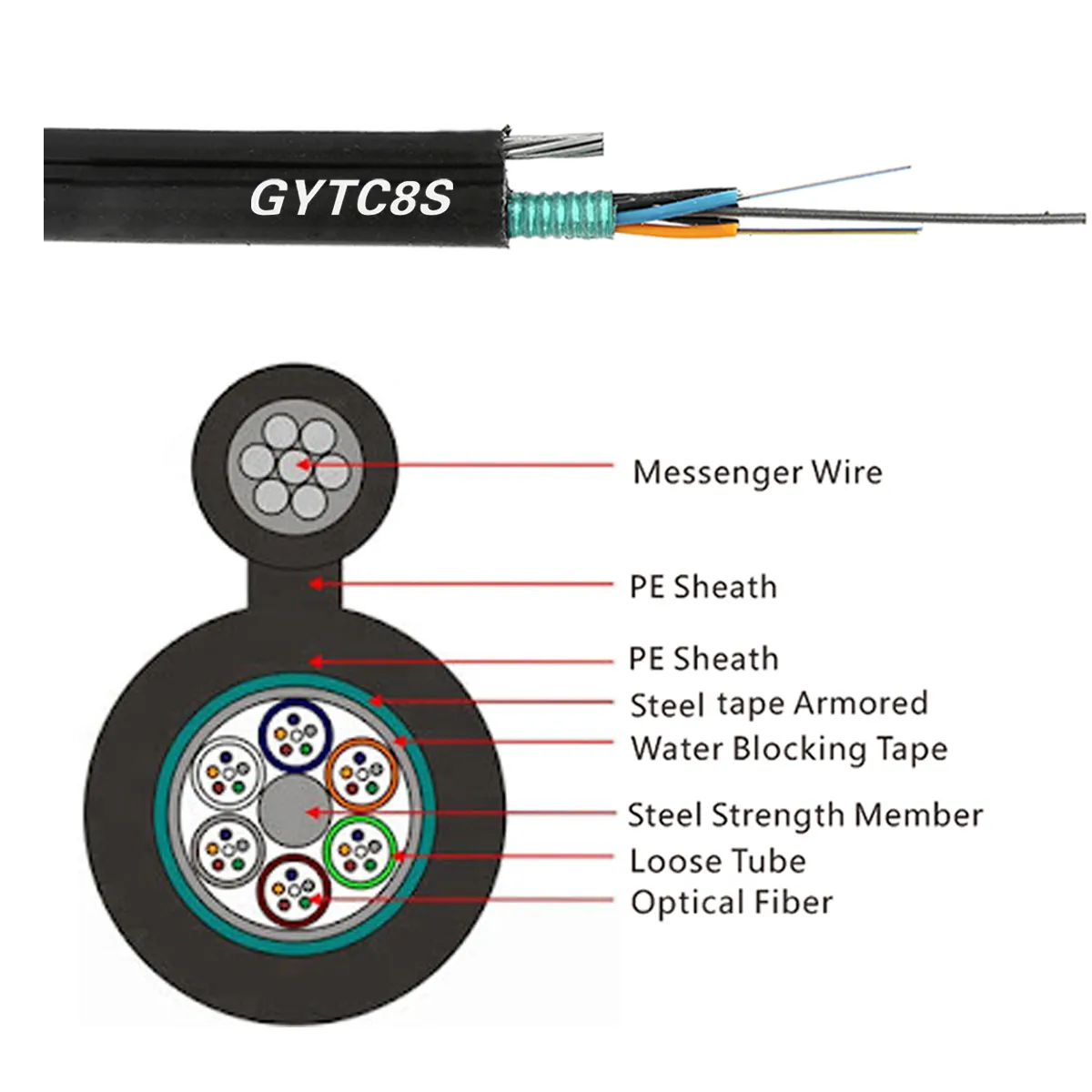

GYTC8S is an outdoor figure-8 self-supporting fiber optic cable with a stranded loose tube cable core and an integrated steel messenger wire. The cable core uses steel tape armor for mechanical protection and a PE outer sheath for outdoor exposure.
The figure-8 profile integrates the messenger and the cable core into a single assembly via a web connection between the two sections. This design is commonly used in outdoor aerial feeder, distribution, and backbone communication networks where a self-supporting installation route is required.
Request Quote Download DatasheetProduct Answer
What is GYTC8S fiber optic cable?
A Figure-8 (Figure 8) fiber optic cable has an integrated steel or dielectric messenger wire attached to the fiber cable section, forming a figure-8 cross-section for self-supporting aerial installation.
Compare GYTC8S with other figure-8 self-supporting cables to select the right design for your project.
| Requirement | GYTC8S (Figure-8 Steel) | GYFXTC8Y (Figure-8 Non-Metal) | ADSS (All-Dielectric) |
|---|---|---|---|
| Messenger | Steel wire | project-specific support element (dielectric) | None (integral) |
| Support | Self-supporting | Self-supporting | Self-supporting |
| Dielectric? | No | Yes | Yes |
| Span length | Medium | Medium | Medium to long |
| Best Pick | ★★★Steel messenger needed | ★★★All-dielectric required | ★★★Long span/distribution |
Typical values for reference. Final cable parameters depend on fiber count, messenger specification, sheath type, span design, wind load, ice load, sag, and installation environment.
| Parameter | Typical Value |
|---|---|
| Cable Type | GYTC8S outdoor figure-8 self-supporting fiber optic cable |
| Fiber Count | Commonly available from 2 to 288, depending on cable structure, tube layout, and project requirements |
| Fiber Type | G.652D / G.657A1 / G.657A2 / custom per project |
| Strength Member | Steel messenger wire (messenger section) |
| Armor Type | Steel tape armor (PSP) over cable core, subject to final cable design |
| Outer Sheath | Double PE (polyethylene) sheath; one over cable core, one over messenger |
| Installation Method | Aerial self-supporting (pole-to-pole, pole-to-building) |
| Application | Outdoor aerial feeder and backbone communication routes |
Pole-to-pole or pole-to-building aerial routes that require integrated support and a compact figure-8 profile.
Outdoor access and feeder connections between poles, anchors, and distribution points.
FTTx aerial network segments where a self-supporting installation method is preferred.
Building-to-building and campus aerial communication links.
Outdoor aerial connections for feeder and backbone routes where trenching is not preferred.
GYTC8S is intended for outdoor aerial self-supporting installation. It is not intended for direct burial or indoor FTTH drop applications.
Compare GYTC8S with similar self-supporting and figure-8 cable models to select the right cable for your project.
Figure-8, Stranded Loose Tube
Figure-8, Central Loose Tube
Stranded, Steel Tape Armor
All-Dielectric Aerial
Figure-8 cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, fiber type, messenger type, sheath, drum length, packaging. OEM/ODM branding available.
In-house tensile, bend, impact, and water-blocking testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Sample approval before mass production.
