Figure-8 self-supporting aerial cable with central loose tube, metal messenger, and PSP protection for pole-to-pole access and distribution routes.

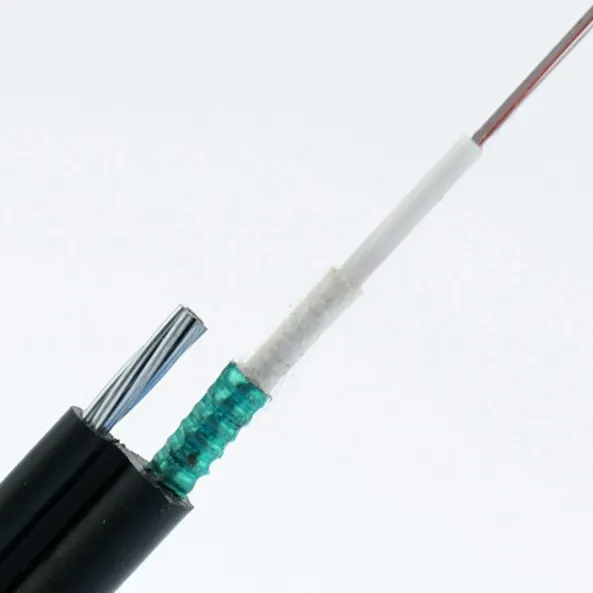

GYXTC8S is a Figure-8 self-supporting aerial fiber optic cable featuring a central loose tube cable core, an integrated metal messenger for pole-to-pole installation, and PSP protection. Designed for aerial access, feeder, and distribution routes, it eliminates the need for separate lashing or messenger wires, simplifying deployment in overhead fiber networks.
Request Quote Download DatasheetProduct Answer
What is GYXTC8S fiber optic cable?
GYXTC8S is a Figure-8 self-supporting aerial fiber optic cable with central loose tube, metal messenger wire, and PSP armoring. It is designed for aerial installation between poles without a separate support strand.
Compare GYXTC8S with similar cable types for your project.
| Requirement | GYXTC8S (Central Tube) | GYTC8S (Stranded Tube) | GYFXTC8Y (Dielectric) |
|---|---|---|---|
| Fiber type | Central loose tube | Stranded loose tube | Stranded loose tube |
| Messenger | Metal (steel) | Metal (steel) | project-specific support element (dielectric) |
| Fiber count | 2–12 | Up to 144+ | Up to 48 |
| Dielectric? | No | No | Yes |
| Best Pick | ★★★2–12 fiber aerial | ★★★High count aerial | ★★★All-dielectric |
GYXTC8S is a figure-8 self-supporting central loose tube outdoor cable with an integrated steel messenger. It is designed for short-span aerial distribution routes where separate support wire is not required.

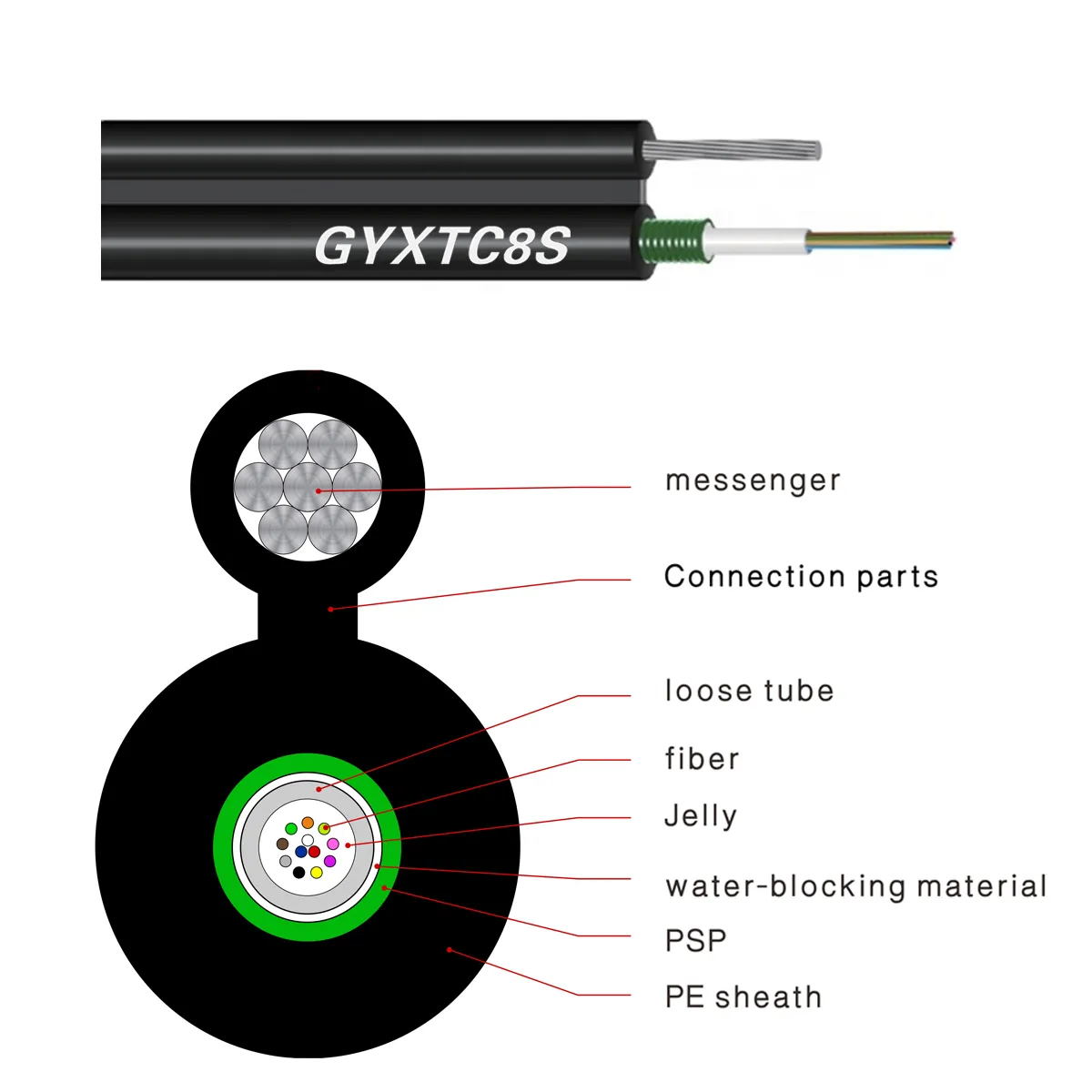

| Layer | Component | Material / Function |
|---|---|---|
| 1 | Optical fiber unit | Fibers in central loose tube according to project fiber count. |
| 2 | Water blocking | Tube filling compound or water-blocking materials for outdoor protection. |
| 3 | Messenger | Integrated steel messenger provides aerial self-supporting strength. |
| 4 | Outer sheath | PE sheath protects the figure-8 cable body in outdoor routes. |
| Item | Typical Value / Option | Notes |
|---|---|---|
| Fiber type | G.652D / G.657A1 / G.657A2 | Confirmed by project specification |
| Fiber count | 2-288 fibers | Subject to final cable design |
| Sheath | PE / project-specified material | Confirmed by installation environment |
| Application | Duct / aerial / buried / distribution route | Final use depends on route design |
| Standard | IEC 60794 series reference | Final test items confirmed before production |
Primary aerial cable from distribution pole to subscriber premises in FTTH access networks.
Aerial feeder cable connecting central office to distribution points along pole routes.
Distribution cable for telecom operator networks running on existing pole infrastructure.
Last-mile aerial deployment in rural and suburban broadband networks where trenching is not feasible.
Aerial addition to existing pole infrastructure for smart city and utility communication networks.
Compare GYXTC8S with similar self-supporting and figure-8 cable models to select the right cable for your project.
Figure-8, Central Loose Tube
Figure-8, Stranded Loose Tube
Stranded, Steel Tape Armor
All-Dielectric Aerial
GYXTC8S cables are supplied through qualified production resources in China, with project-based quotation support and coordinated order fulfillment.
Fiber optic cable supply support for telecom operators, contractors, distributors, and project buyers in international markets.
Flexible customization: fiber count, fiber type, armor type, sheath, cable marking, drum length, and packaging.
In-house tensile, bend, impact, and water-blocking testing per IEC 60794 standards. Compliance documents available upon request.
Standard FCL and LCL shipping from Shenzhen port. DDP and express logistics available for samples and small orders.
One-on-one engineering support for product selection. Technical data sheet and sample approval before mass production.
Configure the key requirement for GYXTC8S Figure-8 Self-Supporting Fiber Optic Cable. Select standard options or enter custom notes, then send your RFQ by WhatsApp or email.
Central loose tube outdoor fiber optic cable.
Central tube outdoor fiber optic cable with PE sheath.
Central tube outdoor cable with steel strength member.
Figure-8 self-supporting outdoor fiber optic cable.
Non-metallic loose tube outdoor cable for aerial and duct use.
Non-metallic figure-8 aerial fiber optic cable.
